Standard Operating Procedures For Zipper Testing Machine Of Reciprocating Pull - China

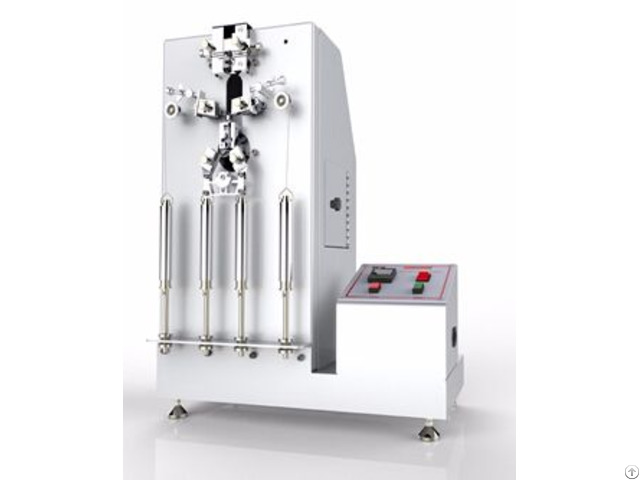

Zipper Testing Machine of Reciprocating Pull：

Zipper bags Tester:

Zipper bags tester in horizontal and vertical under the effect of tension, the ability to withstand a predetermined number of times of reciprocating pulling operation, test which drive the machine is kinetic zipper pull, do 30 minutes each, followed by reciprocating motion to the provisions of till the standard operation.

Zipper bags tester parameters：

1, Transverse clamping device Width: 25mm

2, Longitudinal clamping device total weight: 0.28 ~ 0.34kg

3, Two clamping devices apart: 6.35mm

4, Specimen opening angle for Luggage detection equipment: 60 °

5, Specimen ratcheting angle: 30

6, Reciprocating stroke：5mm

7, Motor: 1 / 4HP

8, counter：LCD, 0～999, 999

9, Machine Size：（L×W×H） 280×550×660mm

10, weight：35 kg

11, power：1∮, AC220V, 3A

　

Zipper Testing Machine of Reciprocating Pull in horizontal and vertical under the effect of tension, the ability to withstand a predetermined number of times of the pulling operation, test which drive the machine is kinetic zipper pull, do 30 minutes each, and followed by reciprocating motion to the provisions of till the standard operation.

In order to facilitate the majority of users to operate more convenient, Kunshan Huakai instrument author hereby made for a summary of its operation, as follows

Zipper Testing Machine of Reciprocating Pull Test preparation

1 - Adjustment knob until the tab located at the highest position of the clamping device B, and this means added fixed pad

2 - The zipper pull tab secured to the pull-tab clamp B.

3 - First zipper trailing end (lower end stop) roughly fixed to the upper clip within the first A point (in this case the first clip and zipper center vertical centerline).

4 - The zipper front end (top dead end) fixed to the two longitudinal clip head at point E

Note

- E-point clip longitudinal head when holding the specimen cannot be clamped sprocket, two specimens shall live clip head in the same position

- Two longitudinal vertical line clip head and the edge of the vertical zipper teeth

5 - A long sword head slightly loosen the fixed point, the end of the zipper pulled up so that the rotating plate and sheet G horizontal line H parallel, then the head at point A clamping clip (this time longitudinally visually clip the first two points in the same horizontal line E )

- By zipper type longitudinal adjustment of the upper and lower spring balance J nut fastener tape is applied to the appropriate longitudinal load as follows

Tension is applied to the lateral slide fastener tape of

Kgf Longitudinal tension applied to the slide fastener tape

　　kgf

　　0.70 0.50

　　1.00 0.90

　　1.60 1.40

　　2.40 1.80

　　3.00 2.30

7 - Adjustment knob until the tab clamping device B at the lowest position is reached, the two lateral head D Release the clip, so that both sides of the fastener tape into two clamping fixture (in this case two lateral visual clip head and perpendicular to the fastener the same level), chuck from the side edge of the fastener should be 5.0 mm gap

8 - Lateral adjustment by zipper type spring balance, Nut fastener tape is applied to the upper and lower of appropriate lateral load as shown in Table 2:

9 - Adjustment on both sides of the adjusting screw C and D there are two sides of the collet 5.0 mm distance.

Zipper Testing Machine of Reciprocating Pull Practice

1 - Test by setting a predetermined number of times.

2 - Press the START button, and set the machine to reach the number of times automatically shut down, remove the sample, and turn off the power
