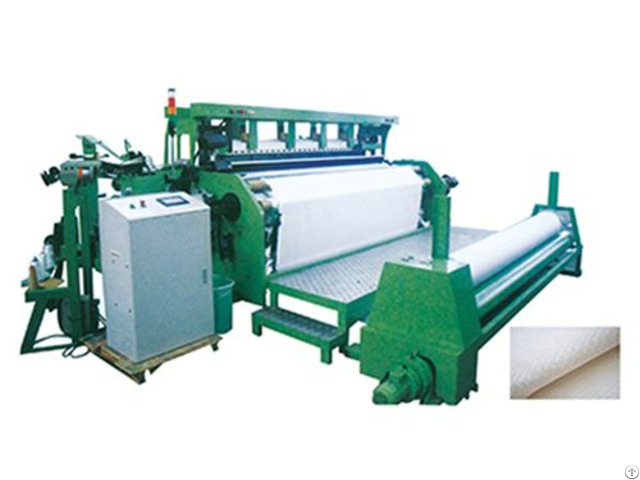

SZG Heavy Duty Industrial Fabric Loom

detecting weft stopping Integral Core Loom

exit rapier Integral Core Loom

The machine is suitable for weaving heavy and high density industrial filter fabrics.

1 - Reed Width: 2600mm, 2800mm, 3600mm

2 - Weft Density: 6-45 pics/cm.

3 - Extension of Yam: Warp: 0.1-0.7mm Weft: 0.1-0.7mm

4 - Loom Speed: 150-200rpm.

5 - Power: About 21KW.

6 - Total Weight: About 10T.

easy to maintain Integral Core Loom Constructions:

1 - Frame: Steel wallboard, integral basement

2 - Main Drive: Middle drive of reluctance motor

3 - Shedding: Down electronic dobby opening; 16 heald frames.

4 - Weft Insertion: Flexible rapier weft insertion.

5 - Beating-up: Conjugate cam mechanism beating-up.

6 - Take-up: Servo motor drive take-up.

7 - Let-off: Servo motor drives let-off.

Double beams can be satisfied when two different supply of warp beams

8 - Web Rolling: External superficial web-rolling, Dia of web rolling is 1.2m.

9 - Lubricating System: The whole machine adopts Automatic centralized lubrication .

10 - Control System: Adopting PLC control, it can set all kinds of parameters buttons of output, automatic display.
