Tx68 7 5kw Cylinder Boring Machine With High Wear Resistance Guide Rail - China

price: 1.00 Dollar US$

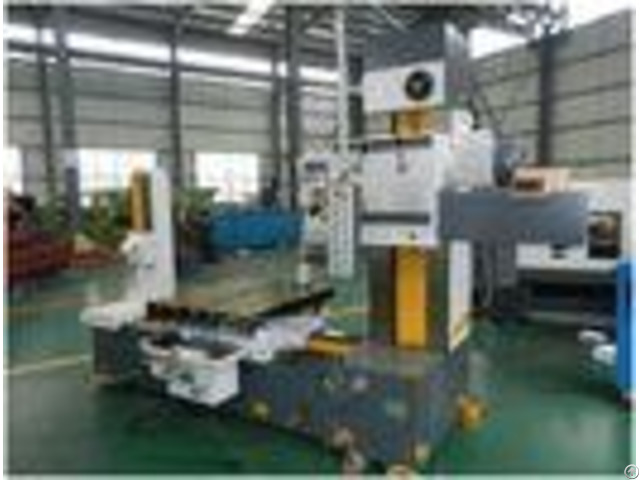

Tx68 7 5kw Cylinder Boring Machine With High Wear Resistance Guide Rail

Products Photos Catalog Tx68 5kw Cylinder Photos Catalog

TX68 Cylinder Boring Machine Horizontal Boring Machine Product main features: 1 - The appearance of beautiful and generous overall layout coordination 2 - Fuselage, vertical column, sliding seat are all rectangular guide, good stability 3 - Guide rail to take automatic quenching, high wear resistance 4 - Gigital synchronous display, intuitive and accurate, can improve the efficiency of low cost Product application: 1 - This machine is suitable for machining the parts of single piece or small batch production in the machine shop.

2 - Drilling, boring and hinge hole can be carried out on the machine tool.

Product main technical specification: - - - - Specifications | Units | TX68 | Spindle bore | mm | 85 | Spindle taper | | Morse 5# | Spindle speed | r/min | (9steps)25-530 | Worktable rapid feed speed (Longitudinal) | Mm/min | (6steps)25-850 | worktable rapid feed speed (Horizontal) | Mm/min | (6steps)25-850 | Spindle lift speed | Mm/min | 216 | Working table size (L*W) | mm | 800700 | Longitudinal travel of worktable | mm | 1400 (Without Tailstock) | Horizontal travel of worktable | mm | 750 | Spindle box travel | mm | 650 | Axial travel of spindle | mm | 300 | Overall dimensions | mm | 27001600 2100 | Max.

load of worktable | T | 2.5 | N.

W | kg | 5000 | - - - - Packaging & Shipping Machine Model: TX68 Cylinder Boring Machine/Horizontal Boring Machine Type of package: Plywood case Packaging size: 270160 210CM(one set in one case) N.W./G.

W: 5000KGS


Company Contact:


  • Phone: 86-510-82736946

  • Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
