X5042 Vertical Knee Type Metal Milling Machine High Speed Cutting System - China

price: 1.00 Dollar US$

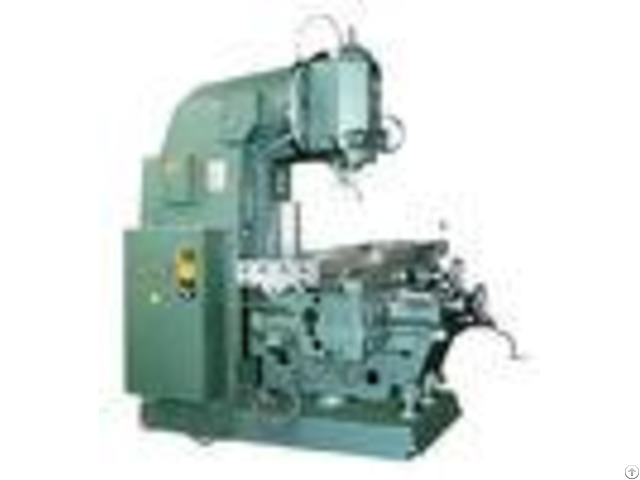

X5042 Vertical Knee Type Metal Milling Machine High Speed Cutting System

Products Photos Catalog X5042 Vertical Knee Photos Catalog

X5042 Vertical Knee Type Metal Milling Machine Product Overview X5042 vertical knee-type milling machine is a general purpose machine which can be used in wide range.

Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous work pieces.

Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing.

It is an ideal machine tool for machining process, maintenance, instrument, die and moulds.

Machine Characteristics Vertical milling head can rotate 45 - Spindle quill can move vertically.

Worktable is applied to automatic and rapid feed.

Hardened and ground slide ways ensure high accuracy.

With high motor power and wide range speed, machine adapts to high speed cutting when using hard alloy cutters.

With gear transmission in machine body and lifting platform, the machine is rigid enough to bear heavy duty processing.

Complete coolant and lubrication system.

DRO equipment is optional.

Sepicifaction - - - - CODE | ITEM | | DETAILS | 1 | WORKTABLE(WIDTHLENGTH) | mm | 4201800 | 2 | T SLOTS | mm | 318 | 3 | DISTANCE BETWEEN T SLOTS | mm | 90 | 4 | MAX.

LOAD BEARING OF WORKTABLE | kg | 800 | TRAVEL | 5 | X AXIS (MANUAL/POWER) | mm | 1200/1180 | 6 | Y AXIS (MANUAL/POWER) | mm | 360/350 | 7 | Z AXIS (MANUAL/POWER) | mm | 470/450 | SPINDLE | 8 | MAX.

ROTARY ANGLE OF VERTICAL MILLING HEAD | 45 | 9 | SPINDLE HOLE TAPER | 7: 24, NO: 50 | 10 | SPINDLE SPEED STEPS | 18 | 11 | SPINDLE SPEED RANGE | r/min | 30-1500 | 12 | ARBOR DIAMETER | mm | 32 50 | 13 | SPINDLE QUILL TRAVEL | mm | 85 | FEED | 14 | FEED SPEED STEPS | 18 | 15 | FEED SPEED RANGE: LONGITUDINAL X | mm/min | 22-1100 | 16 | FEED SPEED RANGE: CROSS Y | mm/min | 22-1100 | 17 | FEED SPEED RANGE: VERTICAL Z | mm/min | 8.3-410 | 18 | RAPID FEED RANGE: LONGITUDINAL X | mm/min | 2400 | 19 | RAPID FEED RANGE: CROSS Y | mm/min | 2400 | 20 | RAPID FEED RANGE: VERTICAL Z | mm/min | 900 | POWER SOURCE | 21 | MAIN MOTOR POWER | kw | 11 | 22 | FEED MOTOR POWER | kw | 3 | 23 | VOLTAGE/FREQUENCY(ACCORDI NG TO YOUR REQUIREMENT) | V/hz | 380/50 | OTHERS | 24 | DISTANCE FROM SPINDLE CENTER TO VERTICAL GUIDE WAY | mm | 450 | 25 | DISTANCE FROM TABLE CENTER TO VERTICAL GUIDE WAY | mm | 275-655 | 26 | DISTANCE FROM SPINDLE NOSE TO WORKTABLE SURFACE | mm | 40-510 | 27 | MACHINE DIMENSION | mm | 252222652432 | 28 | PACKAGE DIMENSION | mm | 247024002720 | 29 | MACHINE WEIGHT | kg | 4700 | - - - - Our Services Reply your inquiry in 24 working hours.

(our normal working time: 6: 00~22: 00) 2 - Experienced staffs answer all your questions in time.

3 - Customized design is available.

4 - Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.

5 - Special discount and protection of sales are provided to our distributor.

6 - Professional factory: We are manufacturer, specializing in producing all kinds of CONVENTIONAL MILLING & CNC MACHINING CENTER.

7 - As an honest seller, we always use superior raw material, advanced processing/testing machines, skilled technicians to ensure our products to be finished in high quality and stable feature.

If the above model is not suitable for your workpiece, please tell us your need and then we can send you the most satisfying drawing.

More information of this project, please contact our sales department immediately.

Thanks for your time!


Company Contact:


  • Phone: 86-510-82736946

  • Address: QIANQIAO High-Tech Development Zone, WUXI CITY, JIANGSU PROVINCE,21400 China, Wuxi , Jiangsu , China

  • Email: Email


Published date: February 9, 2018

  • Business Description: Jiangsu Qiangli Machinery Co., Ltd. Was incorporated at 2005, Our company is a high& new technological enterprise which takes developing and manufacturing of CNC machine tools, their key parts , common machine tools and sheet metal machining equipments as its main business.
