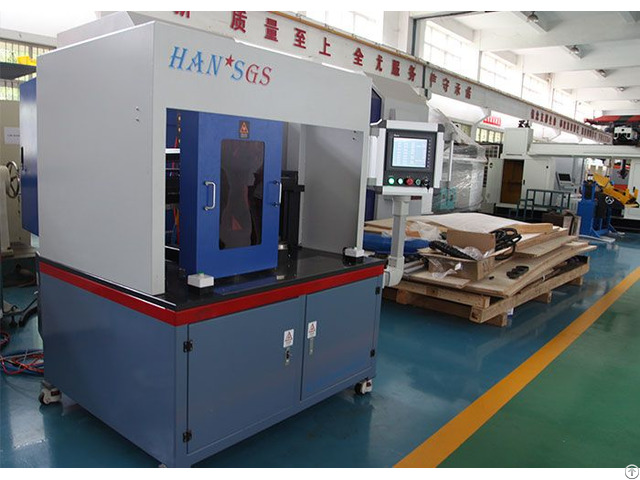

2m X 2 5m Hans Gs Dual Position Clutch Laser Welding Machine - China

Product description 1 - This welding machine is specially designed for the welding and double station of clutch type circular weld.

2 - Control cabinet: The main configuration song motor shaft servo drive and circuit systems, fiber lasers.

3 - Welding host: There are several main components: rack, electric translation stage, electric rotary table, manual angular displacement stage, laser welding head, electrical control section.

The Z-axis is used to adjust the welding focal length.

The X-axis can adjust the welding point according to the clutch size.

The angular displacement stage can adjust the pitch angle of the workpiece according to the welding process.

The C-axis is used to drive the workpiece to rotate for one week during welding.

4 - Work: The workpiece is mounted to the welding fixture above, through the manual adjustment to find the welding position, automatic welding, manual take the material, the light barrier will be moved to the middle welding, take the light will be placed on the side of the light barrier to ensure that Safe operation.

5 - Welding mode: adjust the laser output head is facing the weld of the workpiece, the laser welding head to maintain continuous laser output, the workpiece by the electric rotary translation stage driven uniform operation for a week to complete the welding.

Welding host There are several main components: rack, electric translation stage, electric rotary table, manual angular displacement stage, laser welding head, electrical control section.

The Z-axis is used to adjust the welding focal length.

The X-axis can adjust the welding point according to the clutch size.

The angular displacement stage can adjust the pitch angle of the workpiece according to the welding process.

The C-axis is used to drive the workpiece to rotate one week during welding.

WUHAN HANS GOLDENSKY LASER SYSTEM CO., LTD.is a high-power laser processing solutions provider.

Leading products include: laser cutting complete sets of equipment, laser heat treatment / cladding complete sets of equipment, laser welding complete sets of equipment, laser drilling complete sets of equipment, such as more than 40 different types of laser processing equipment and ancillary products.

These products are more independent intellectual property rights, widely used in iron and steel metallurgy, petroleum, metal processing, tobacco and paper processing, hardware tools, automotive, machinery, aerospace, chemical, electronics manufacturing and other industries, these industries have overcome a number of Technical problems, won the laser heat treatment / cladding equipment, high-power gear laser welding equipment, cigarette paper and other parts of the laser drilling equipment market share in the first domestic share.

Technical conditions

The company has undertaken thirty government awards at all levels of government science and technology projects and scientific and technological achievements, was included in the Wuhan City Eleventh Five-Year Plan "large-scale laser equipment systems integration and new laser manufacturing, " key support and guide enterprises.

The company is a leader in high-power laser industry in China and possesses key core technologies and advanced international unit technologies in high-power laser welding.

The product has strong ability of continuous innovation and is the key to the development of laser processing.

Companies in steel, petrochemical, automotive and many other industries for many years, has accumulated rich experience in laser processing system integration and laser processing technology.
