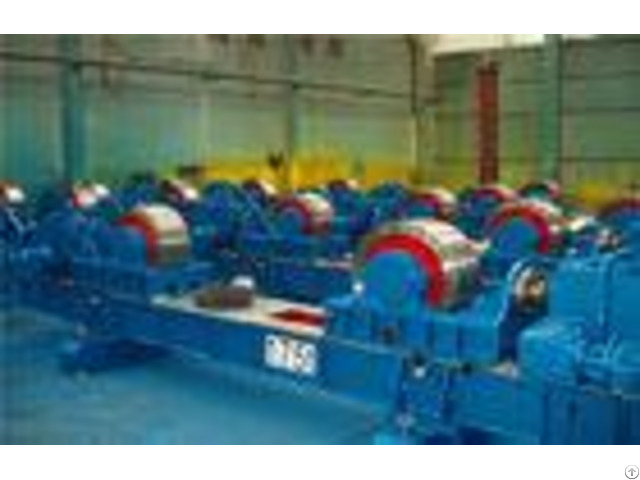

2t 250t Conventional Pipe Welding Machine With Rubber Rollers - China

2T - 250T Conventional Pipe Welding Machine with Rubber Rollers Quick Detail # Conventional bolt adjustable type; # Fine machining to upper surface of base; # All motion parts have lubrication system; # Lifting lug on the base of roller bed; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; 1 - Introduction: This series pipe welding rotators are bolt adjustable type.

It also can take self-alignment/self-cente ring rack.

Our standard welding roller beds are designed for maximum workpiece loads from 2T to 250T are used for the rotation and positioning of heavy, rotationally symmetrical workpieces like tanks, pipes or boilers for further machining or welding.

We also provide tailor-made pipe welding rotator according to your special requirements.

2 - MainParameters - - - - Model | XHGK2 | XHGK5 | XHGK10 | XHGK20 | XHGK40 | XHGK60 | XHGK80 | XHGK100 | XHGK160 | XHGK250 | Max loadingT | 2 | 5 | 10 | 20 | 40 | 60 | 80 | 100 | 160 | 250 | Suit diameter mm | Min | 150 | 250 | 250 | 250 | 600 | 700 | 700 | 700 | 1000 | 1000 | Max | 2600 | 2800 | 4000 | 4200 | 4500 | 5000 | 5500 | 6500 | 6000 | 7500 | Rubber Roller mm | Dia | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 550 | - | - | Width | 80 | 100 | 120 | 120 | 120 | 120 | 120 | 120 | - | - | Metallic roller mm | Dia | 190 | 240 | 290 | 340 | 390 | 440 | 494 | 540 | 620 | 700 | Width | 16 | 20 | 38 | 45 | 60 | 70 | 80 | 100 | 220 | 260 | Linear speedm/h | 6--60 | Speed Control | VFD | Motor powerkW | 20.18 | 20.37 | 20.55 | 21.1 | 21.5 | 21.5 | 22.2 | 22.2 | 24 | 25.5 | Roller distance mm | Min | 260 | 400 | 400 | 450 | 800 | 880 | 900 | 1000 | 800 | 1200 | Max | 1160 | 1200 | 1780 | 1950 | 2000 | 2200 | 2500 | 2800 | 2800 | 4000 | Aboveareourstandardmodels andparameters, anditcanbedesignedandmanu facturedonrequest.

| - - - - *Wereservetherighttoalter specificationswithoutprio rnotice.

3 - Mainfeatures Thestandardmodelsofour pipe welding rotators or roller beds havethefollowingfeatures: # Steplesslycontrollablerot arydrivesbymeansofA.C.orD .

C.

motor (onrequest) driveviaself-locking # wormgearreducers; # SchneiderorPanasonicinver tertorealizeVFDspeedcontr olandsynchronousrotationo frollers; # Heattreatmenttomainweldin gpartsafterwelding;sandbl astingtreatmenttomainweld ing partsbefore # painting; # Finemachiningtouppersurfa ceofbase; # Rollerdistanceisboltadjus tableandrollersurrounding angleamong45110; # Allmotionpartshavelubrica tionsystem; # MainelectricelementsareAB B/Siemensbrands; # HandpendantwithForward-St op-Reverseandspeedpotenti ometerarestandard; # Liftinglugonthebaseofroll erbed; # Standardcolor: Optionalfeatures: # Rollermaterialoptions: Met allicorPUroller; # Undercarriage/travelboogi e; # Interfaceforintegralcontr olwithweldingcolumn&b oom; # Self-centering/self-align mentrack; # Footswitch; # Servodrive; # Anti-explosionmotor&c ontrolpanel; 4 - Supplyrange # Drivingturningroll 1set # Idleturningroll 1set # Electriccontrolsystem[inc luding1pieceofelectriccon trolcabinet, 1pieceofremotecontrol boxwithcable6m(cableforXH GK250is8m)] 1set # Technicaldocuments(withma nualbook, conformitycertificate, packinglist, etc) 1set 5 - Referencedrawing 6 - Referencephoto 7 - Comparativeadvantage # ISO9000&CEcertified; # Professionalandexperience dengineerteamtoensurethea dvanceddesignaboutstructu reandelectric; # Experiencedandskilledwork erstocareforeachworkflowf rommaterialcutting, welding, grindigtofinal # assemblyandtestingtoensur ehighmachinequality; # Professionalandexperience daftersaleserviceteamtogu aranteequickandsatisfiedi nstallation, # commissioningorservice; # Optimummaterialsandoutsou rcingstoensurethebestperf ormance; # Commissioningandtestingbe foredelivery; # Factoryinspectionisencour aged;
