Adjustable Pipe Welding Rotator 10t Conventional Pu Metallic Roller - China

Adjustable Pipe Welding Rotator 10T Conventional PU / Metallic Roller Quick Detail # 10T conventional pipe welding rotator with PU rollers and metallic rollers; # Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; # Quick connections joints, easy electric connections; # Roller distance is bolt adjustable and roller surrounding angle among 45110; # Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard; # All motion parts have lubrication system; # CE and ISO9001: 2008 certified, safe and reliable; 1 - Main Parameters - - - -

Model | XHGK10 | Max loading T | 10 | Suit diameter mm | Min | 250 | Max | 4000 | Rubber Roller mm | Dia | 300 | Width | 120 | Metallic roller mm | Dia | 290 | Width | 38 | Linear speed m/h | 6--60 | Speed Control | VFD | Motor power kW | 20.55 | Roller distance mm | Min | 400 | Max | 1780 | - - - - 2 - Introduction The series turning rolls are a centerline adjustable roller.

With this type of roll, each wheel is driven independently from one another with its own motor.

The turning rolls, which maintain a constant centerline, can rotate work pieces with diameters ranging as small as 150mm up to 8000mm and load capacities from 2 ton to 1, 000 metric tons.

The PU/rubber-tired rollers support the load.

The design protects the rubber from overloading and decreases the overall roller width.

The rubber-tired rollers use a steel support ring in combination with the rubber to support the load.

The design protects the rubber from overloading and decreases the overall roller width.

Powering this unit is an adjustable frequency AC Drive and two (2) inverter duty AC motors.

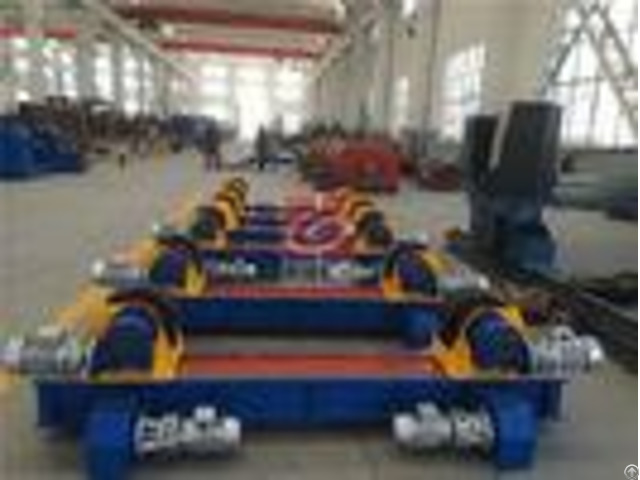

3 - Reference Photos 4 - Comparative advantage # ISO9001&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged; Tag: pipe welding rotator, tank rotator, centerline adjustable turning roll, bolt adjustable roller beds
