Adjusted Bolt Pipe Welding Rotator Self Alignment Tank Roller - China

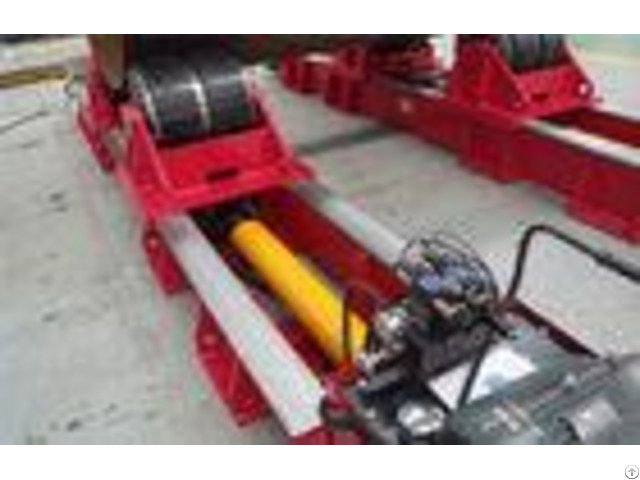

Adjusted Bolt Pipe Welding Rotator Self - alignment, Tank Roller 1 - Quick Detail # Bolt adjustable pipe welding rotator with travel boogie; # Broadly used in pipe or vessel fit-up processes; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; 2 - Main Parameters - - - - Model | HGK80Y | Max loading T | 80 | Suit diameter mm | Min | 2000 | Max | 4500 | PU Roller mm | Dia | 500 | Width | 400 | Linear speed m/h | 6--60 | Speed Control | VFD | Boogie travel speed mm/min | 300-3000 | Inner rail span mm | 2000 | Roller motor power kW | 2*2.2 | Boogie motor power kW | 2*1.1 | Above are our standard models and parameters, and it can be designed and manufactured on request.

| - - - - *We reserve the right to alter specifications without prior notice.

3 - Main features The standard models of our pipe welding rotator or roller beds have the following features: # Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking # worm gear reducers; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; # Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before # painting; # Fine machining to upper surface of base; # Roller distance is bolt adjustable and roller surrounding angle among 45110; # All motion parts have lubrication system; # Main electric elements are ABB/Siemens brands; # Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard; # Lifting lug on the base of roller bed; # Standard color: Optional features: # Roller material options: Metallic or Rubber roller; # Self-centering/self-align ment rack; # Foot switch; # Servo drive; # Anti-explosion motor&control panel; 4 - Supply range # Driving turning roll 1set # Idle turning roll 1set # Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set # Technical documents (with manual book, conformity certificate, packing list, etc) 1set 5 - Reference photo 6 - Comparative advantage # ISO9000&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged;
