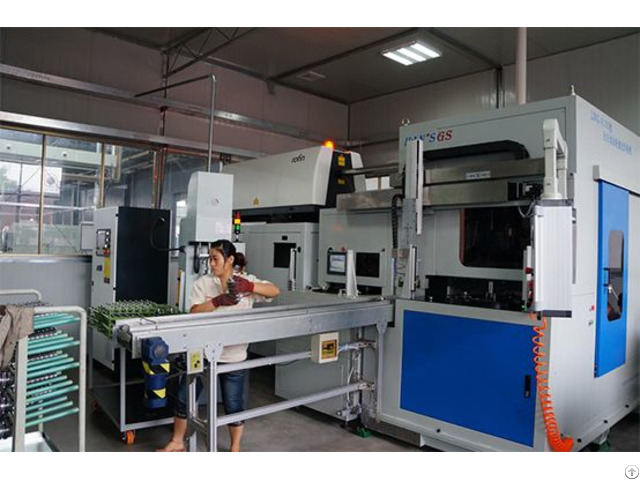

Automatic Cnc Laser Welding Machine Price For Sale - China

Product Advantages:

1 - Highly automatic level: adopting auto preheat machine, robotic hand for loading and unloading, four-stations auto turn plate.

2 - High quality: with auto pressing device, effectively reduce welding deformation, highly improve the production efficiency and quality.

3 - Highly integration: integrated the auto preheat machine, melding main machine and unloading conveyor together.

4 - Without space limitation, could weld small part and the parts of close interval.

5 - Non-contact welding, greatly reduce the deformation and wear of the appliance.

6 - Can weld various materials, and even any two kinds of various different textures and different natures can be welded well.

Light guiding system:

1) The laser power measurement and display (located in the laser control cabinet) :

Work online detection of laser power, the effective power feedback, laser power control at ±2%, which guarantees the stability of welding/cutting.

2) Transmission mirror:

Machine all-trans turn transmit mirror make horizontal beam turn into vertical laser beam, import the laser beam into focused head, reflection transmission efficiency is ≥99% .

3)Light brake system:

ROFIN laser has two sets of brake light device: mechanical brake and electronic brake, laser beam will be output when both of brake open, according to process need to temporary shut down electronic brake light.

Through to the electronic shutter control, it can realize continuous welding and welding section.

The welding head parameter configuration:

1 - The focal length of the focusing lens: 5 "and 7.5";

2 - Clear aperture: 45.5 mm;

3 - Measuring range: 1 ~ 5 mm;

4 - The adjusting range: level ±1.5mm; Vertical -10mm~+5mm;

5 - Measurement resolution: 0.01 mm;

6 - Maximum pressure: 25 bar;

7 - Cooling method: water or air cooling
