Description:

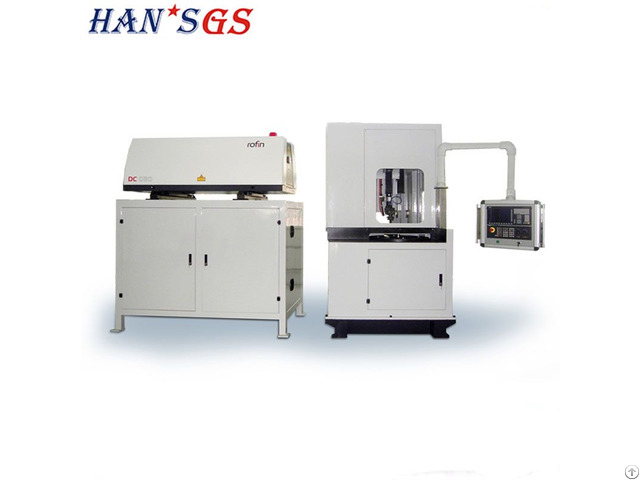

HC03 high power gear laser welding machine, is composed by high power Rofin-DC030/DC035 laser source, water chiller, processing machine tool, auto preheat machine, robotic hand for loading and unloading, CNC system and do on.

The control system can realize integrated control to the whole machine, such as processing machine tool, water chiller, protective air unit and so on .

It is easy to adjust the parameters, with centralized display and strong anti-interference ability.

With reasonable hardware and software, durable and stable, protect operator's safety by laser fence.

HC03 type welding achine is specialized in processing transmission dual gear, dual gear shaft of automobiles.

Laser welding machine welding Welding saw blade of diamond Welding for saw blade of diamond

Power: 1500~2000W Speed: 0.7~1m/min, Fusion depth of welding: 1.5~2.8mm.

Laser welding application

Laser welding is mainly used in automobile, tools, home appliance, steel industry and others, for example nest gear of transmission, flying wheel, airbag, rock arm, muffler, silicon oil shock absorber, hydraulic torque converter, wood saw blade, diamond saw blade, radiator of water Welding for pulsor

Welding depth 6.3mm, Power 3800W, Speed1.6m/min; Welding depth 5mm, power 2500W, speed1m/min;

Welding for sealing parts

Welding material: 304SS, Power: 700W, Welding speed: 2m/min, Welding depth: 0.7mm, sealing water pressure test: ≥4kg Quality Guarantee System:

1 - The integral design will be accomplished by us within 30 working days after the contract assignment.

Procurement of components and manufacturing of casting piece will be priory to ensure the delivery time.

2 - With ISO 9001 quality system request, we'll keep the coordination and restrict standard in all manufacturing process including rigid inspection for raw material selection and procurement.

Also the manufacturing process is under inspection and control to prevent the unqualified product flow into next manufacturing step so as to ensure the delivery time and quality of all our products delivered.

3 - Inspection of our design, manufacturing, assembly, test and installation by customer is welcome at anytime, and we will always offer our cooperation.

Advantages of Laser welding

1 - Fast speed, heat distortion of the workpiece is small;

2 - High energy melt contact surface, welding strength is higher than the substrate;

3 - Easy automation production;

4 - More Comprehensive economic benefits.

5 - Green processing, pollution-free and pollution-free Welding head

Equipment uses the US LASERMECH's fiber welding head.

It is specifically for fiber-coupled laser transmission welding head intelligent design, the product is designed with a built-in smart sensors and built-in water manifold full compact design, rugged crashworthiness, stable performance, fully meet the 24 hours in- a -row working plant environment.

Operation of

the optical fiber welding head is very simple and easy to use, protecting lens and focusing lens drawer mirror chamber design can be more flexible and easy to replace, but also can better protect

the inside optical unit, in order to protect welded joints have a longer service life.

Optical fiber welding head configuration is very flexible, it can be based on the specific requirements of end-users, the optional in-line type or level of the incident, and whether to use CCD coaxial monitoring, auto-focus, side to send the wire, an air knife, coaxial nozzles, welding monitoring unit and a special focus unit module (bifocal or rectangular beam), etc.

Our service: After-Sale Service

1 - Our after-sale network is all over the world which will provide the comprehensive after-sale service to our customer.

2 - Our commitment is as follow:

3 - One year guarantee for the whole equipment.

4 - We will answer your questions within 24hours.

5 - When Equipment warranty expires, lifelong maintenance services will be provided.

6 - After the expiry of the warranty we will offer a wide range of software support with free upgrade for lifelong
