Bright Annealing Nitrogen Generation Equipment Reliable Stable Operation - China

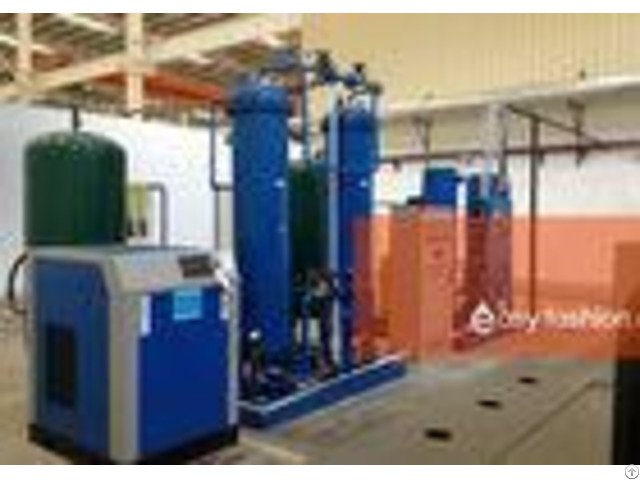

Nitrogen Generator Overview: Nitrogen generator is designed and manufactured by adopting pressure swing adsorption technology to generate nitrogen.

The generated nitrogen is mainly used for bright annealing, quenching and as protection atmosphere for metal powder sintering.

Technical specifications: - - - - Model | EFPSA-595-10 | EFPSA-595-15 | EFPSA-595-20 | EFPSA-595-30 | EFPSA-595-60 | EFPSA-595-80 | Gas capacity (Nm3/h) | 10 | 15 | 20 | 30 | 60 | 80 | Rated power (kW) | 7.5+1.5 | 11+1.5 | 11+1.5 | 15+1.5 | 37+1.5 | 37+1.5 | Rated voltage of power supply | 380V | Outlet pressure | 0~0.6MPa (adjustable) | Purity | 99.90% | Dew point | <-40C | Purity after purification | 100.00% | Dew point after purification | <-60C | Control system | PLC automatic control | Information above is standard configuration.

Adjustment is available upon request.

| - - - - Features 1 - Low cost: PSA advanced process is a simple nitrogen generating method, which can produce nitrogen in a few minutes after it boot up, Its energy consumption and production cost are lower than the cryogenic air-separation nitrogens.

2 - Reliable performance: Imported microcomputer control to realize automatic operation; operator dont need to get special training; just press the start switch, it can automatically run to achieve continuous production.

Nitrogen purity is stable and fully monitored and displayed by the instrument to ensure the required nitrogen purity.

3 - Adopts high quality imported carbon molecular sieve which has features of huge adsorption capacity, high pressure resistance, long service life, etc.

4 - High-quality imported pipe-type pneumatic valve is adopted to ensure stable and reliable operation.

The nitrogen generator also has strong technical strength and offers best after-sales service.

With containerization characteristic of equipment, on-site installation only need to connect the sources of gas, power and water.

Excellent electrical and mechanical assembly abilities provide continuous technical support for customers.
