Convenient Operation Bga Pcb Chips Rework Welding Station For Mobile Phone Repairing - China

Machine Type: Welding Rotator

After-sales Service Provided: Free spare parts

After-sales Service Provided: Video technical support

After-sales Service Provided: Online support

Warranty: 1 Year

Applicable Industries: mothrboard repair shops

Place of Origin: Guangdong, China (Mainland)

Brand Name: WISDOMSHOW

Voltage: AC 220V±10% 50/60Hz

Current: N

Rated Capacity: N

Rated Duty Cycle: N

Dimensions: L650*W630*H 850mm

Weight: 60kg

Usage: motherboard repair

Certification: CE

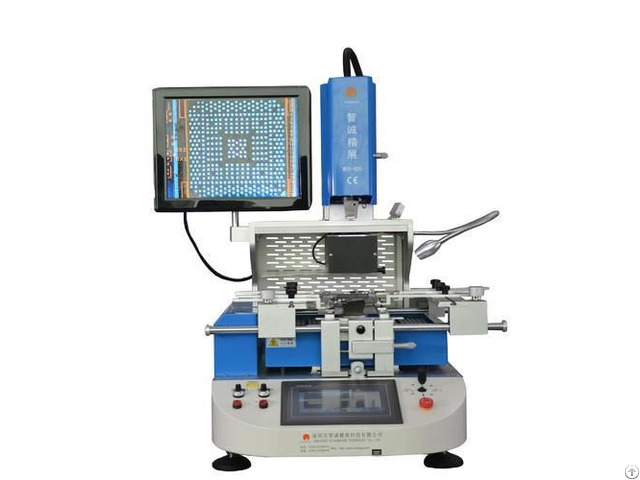

Product name: WDS-620 BGA Rework Station

Application: PCB BGA Chip Repair

Power supply: AC 220V±10% 50/60Hz

Total power: Max 5300W

PCB size: Max 410*380mm Min 10*10 mm

Applicable chips: Max 70*70mm Min 1*1 mm

Locating way: V shape slot, PCB support jigs

Electrical material: Driving motor+PLC smart temp.

controller+color touch screen

Weight of machine: 60KG

Color: White&Blue Functional Characteristics

Independent 3 heating zones temperature control system 1 - The upper and lower hot air heating, which can heat up at the same time from the top of he component to the bottom of the PCB;bottom IR heating, temperature precision control within ±1℃.

8 segment temperature control independently.

2 - Hot air district heating for BGA and PCB at the same time, and large area IR heater preheating up for the bottom of PCB to avoid completely PCB deformation during reworking, the upper or lower temperature zones could be used alone and combine freely the energy of up and lower heating element.

3 - Adopted high precision K-type thermocouple close-loop control and PID parameter self-setting system;4 temperature curves can be displayed with instant curve analysis function and multi-group user data can be saved;temperature can be tested precisely through external measurement interface, curves can be analysed, set and correct on the touch screen at any time.

Precision optical alignment system

Using high definition and adjustable CCD color optical alignment system, beam split, amplification, lessening, fine adjustment and auto focus with the function that automatic color aberration resolution and brightness adjustment, adjustable image contrast;equipped with 15 ” high definition LCD monitor.

Multi-functional and humanized operation system

1 - Adopting the HD touch human-machine interface;upper heating head and mounting head designed 2 in 1;providing many kinds of titanium alloy BGA tuyere can be rotated in 360 degree for easy installation and replacement.

2 - X, Y and R angle adopted micrometer fine-tuning, accuracy locating, precision can reach ±0.01mm.

Superior safety protection function

With the alarm function, after the BGA welding the machine can alarm by itself.

In the case of temperature abuse, the circuit can power off automatically with the double over-temperature protection.

Temperature parameter having password protection to prevent any modification.

automatic soldering desoldering station

Packaging & Shipping

1, Standard export wooden package for bga rework station;

2, Delivery in 3 workdays after payment confirm; 3, Shipping by TNT, UPS, DHL, FEDEX (IE), Aramex or by air or by sea;

4, Loading Port: Shenzhen or Hongkong.
