Conventional Rotary Welding Positioners Automatic Skf Slewing Bearing - China

Conventional Rotary Welding Positioners Automatic SKF Slewing Bearing Quick Details # Conventional rotary welding positionershave universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces; # Free standing, robust all steel fabrication; # Fully machined turntable of various sizes with centering grooves and T-slots; # Main electric elements are ABB/Siemens brands; # Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard; 1 - Introduction Conventional welding positioners are designed for maximum loads of 100KG to 2, 000KG have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry, metal structure and others lines.

We also provide tailor-made welding positioners according to your special requirements.

2 - MainParameters - - - - Model | HB1 | HB3 | HB6 | HB12 | HB20 | MaxloadingKGs | 100 | 300 | 600 | 1, 200 | 2, 000 | Ratedeccentricitymm | 100 | 150 | 150 | 200 | 250 | Ratedcenterofgravitymm | 150 | 200 | 250 | 250 | 300 | Worktablediametermm | 400 | 600 | 800 | 1000 | 1200 | Tiltangle | 0120 | 0120 | 0120 | 0120 | 0120 | Rotationspeedrpm | 0.11 | 0.11 | 0.11 | 0.11 | 0.090.9 | Tiltspeedrpm | 2 | 0.9 | 0.8 | 0.5 | 0.4 | RotationmotorpowerKW | 0.06 | 0.37 | 0.37 | 0.75 | 1.1 | TiltmotorpowerKW | 0.18 | 0.37 | 0.55 | 1.1 | 1.5 | Maxrotationdiameterofwork -piecein90mm | 600 | 1000 | 1500 | 1570 | 1900 | EarthingAmperesA | 1000 | 1000 | 1000 | 1000 | 1000 | Mainframelengthmm | 740 | 930 | 1200 | 1400 | 1700 | Mainframeheightmm | 420 | 700 | 900 | 1000 | 1200 | Mainframewidthmm | 527 | 820 | 800 | 1000 | 1200 | Powersupply | 380V50HZ3Portailormade | Aboveareourstandardmodels andparameters, anditcanbedesignedandmanu facturedonrequest.

| - - - - *Wereservetherighttoalter specificationswithoutprio rnotice.

3 - Mainfeatures Thestandardmodelsofourcon ventional rotary weldingpositionershavethe followingfeatures: # Freestanding, robustallsteelfabrication ; # Variablespeedtablerotatio ncontrolledbyinverter; # Motorwithbrake; # Fullymachinedturntableofv arioussizeswithcenteringg roovesandT-slots; # Sandblastingtreatmenttoma inweldingpartsbeforepaint ing; # Allmotionpartshavelubrica tionsystem; # MainelectricelementsareAB B/Siemensbrands; # HandpendantwithForward&am p;ReverseRotation, TiltUP&DOWN, andspeedpotentiometerares tandard; # Efficientbuilt-inearthing ; # Liftinglugonthebaseofroll erbed; # Footswitch(Note: forHB20, footpedalisanoption.

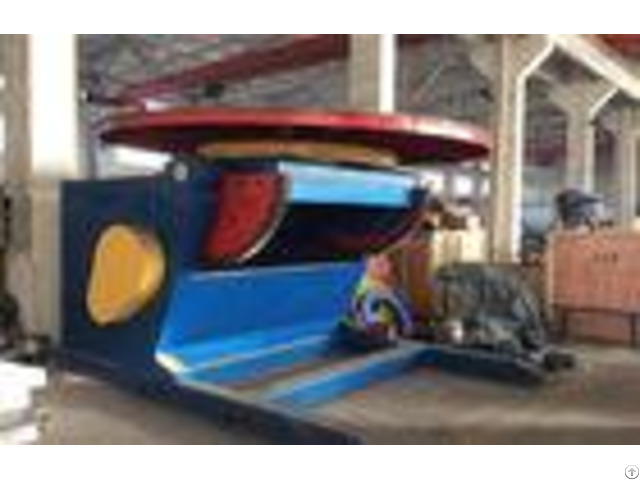

); # Standardcolor: Optionalfeatures: # Squareworktable; # Extensionarms; # Extensivesystemaccessorie ssuchasthree-jawchucks; # Interfaceforintegralcontr olwithweldingcolumn&b oom; 4 - Supplyrange # Weldingpositioner(includi ngmachineframe, worktable, etc) 1set # Electriccontrolsystem[inc luding1pieceofelectriccon trolcabinet, 1pieceofremotecontrolboxa nd pedalwithcable6meach(nofo otpedalforHB20)] 1set # Technicaldocuments(withma nualbook, conformitycertificate, packinglist, etc) 1set 5 - Referencedrawing 6 - Referencephoto 7 - Comparativeadvantage # ISO9000&CEcertified; # Professionalandexperience dengineerteamtoensurethea dvanceddesignabout structureandelectric; # Experiencedandskilledwork erstocareforeachworkflowf rommaterialcutting, welding, grindingtofinal # assemblyandtestingtoensur ehighmachinequality; # Professionalandexperience daftersaleserviceteamtogu aranteequickandsatisfiedi nstallation, # commissioningorservice; # Optimummaterialsandoutsou rcingstoensurethebestperf ormance; # Commissioningandtestingbe foredelivery; # Factoryinspectionisencour aged;
