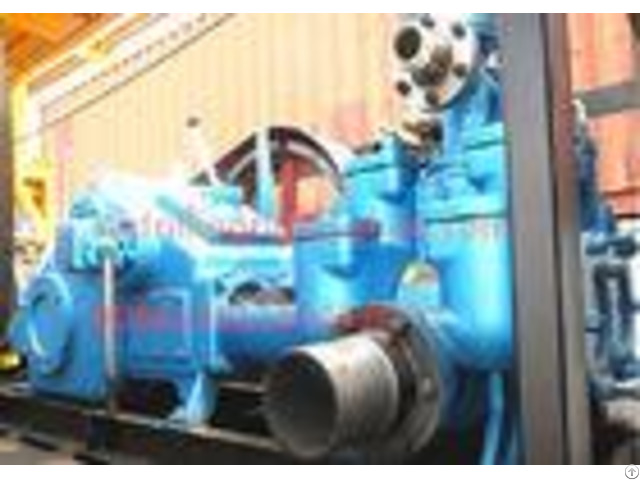

Deep Hole Water Well Drilling Mud Pump Diesel Engine Driven 850 L Min Flow Rate - China

price: check with company for price

850 L/min flow rate, 5Mpa deep hole water well drilling Mud Pump driven by diesel engine BW850/5 Characteristics BW850/5 mud pumps horizontal, two-cylinder, double-acting, drive with built-in gear reducer and are designed to discharge washing liquid (water, mud) in the hole in exploration and stratigraphic drilling for oil and gas.

Mud pumps are also widely used in the food, chemical and construction industries for pumping various non-aggressive liquids.

When drilling, use the pump BW850/5 for supplying washing liquid.

To operate this pump may be at different temperatures (from-50 C to +40 C).

The washing liquid may be water or various emulsion, a basic requirement for which is: Density, viscosity, the amount of sand, the number of cuttings.

Equipped with ball valves pump BW850/5 can be used for pumping a variety of complex solutions, which must have certain parameters: Density, viscosity, solid particles in the composition.

BW850 deep hole drilling hydraulic plunger triplex heavy duty slurry pump BW850/5 Mud Pumps is equipped with drilling rigs to drill holes with mud.

During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.

BW850/5 mud pump are mainly used for irrigation agricultural machinery.

the main characteristic is the high pressure, lift much, less engergy consumption, easy operation, high quality and duarable, easy to move, especially for mountain terraces of irrigation.

BW850/5 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed.

Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application, the deepest can be used with 1800meters driling rig, it also can be used cement perfusion.

They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

Specification Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee - - - - Type | Horizontal double cylinder reciprocating double action piston pump | Stroke | 260mm | Pump speed | 66/min | Cylinder diameter | 140mm | 130mm | 95mm | Flow | 850 L/min | 600 L/min | 350 L/min | Pressure | 5 MPa | 6 MPa | 8 MPa | Power | 90 Kw | Diameter of suction pipe | 127mm (5) | Diameter of discharge pipe | 63.5 mm (2-1/2) | Shape size | 3018*1120*2050mm | Weight | 3100Kgs | - - - - Packing& Delivery Service In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.


Company Contact:


  • Phone: 86-10-84673566

  • Address: Room 1005,Building4,Tianchangy uan,Beiyuan Road,Chaoyang District,Beijing,China, Beijing , Beijing , China

  • Email: Email


Published date: May 29, 2018

  • Business Description: Beijing Jincheng Mining Technology Co., Ltd(JCdrill) located in Beijing, China, for more than 20 years we have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, relative accessories & drilling services.
