Fast Portable Core Drilling Machine For Mining Full Hydraulic 200m Depth - China

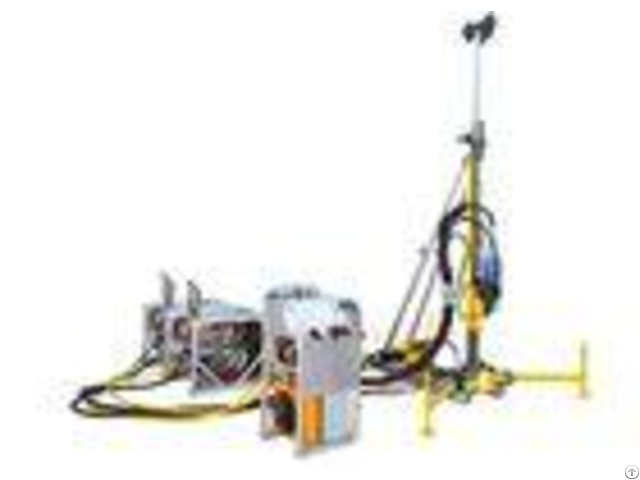

200M Depth Portable Core Drill Rig Light weight Design with Kubota Engine Application EP200 is widely used in mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.

), hydraulic and hydropower project, tunnel exploration and geographical investigation.

It works particularly well in areas with complex geographic characteristics such as mountainous regions, forests and plateaus.

It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.

Characteristics Lightweight Modulized design with the heaviest pieceweighing only 120kg Aviation aluminum materials used for more than 90% of the framework Fast Easy to relocate with the capability of being assembled/disassembled within only 20 minutes Thin wall rods, low resistance, and speed penetration Excellent Long stroke cylinder, easier to control than the chain Cost-efficient No road construction; No infrastructure construction; Time saving Hydraulic coring and drilling; No drilling tower; Energy saving Environmentally friendly; Worry-free Low consumption;Cost saving The key issue regarding the traditional portable and vertical drilling machines, when executing projects with a depth of 200 meters, is the balance of lightweight and efficiency.

With its lightweight, easy assembling/dissembling capability and high efficiency, EP200 is your best new choice.

Specification - - - - Drillable Depth | HQ/NTW/BTW | 30 /100/200m | Borehole Diameter | | 96/75.7/60mm | Core Diameter | Rod Length | 63.5/56/42mm | Engine power | D1105-T, 23.5kw/3000rpm | KUBOTA | Pressure | 21 Maximum pressure 54 Maximum flow Water cooler | Top drive | Maximum toque | 400NM | Rotation head | Maximum rotation speed | 1300rpm | | Feed travel (Cylinder drive) | 1.27m | | Pull/thrust | 33KN/24KN | Winch | Average speed | 150m/min | Lift | 600kg | Were Diameter/Accommodation | 5mm/240m | Mast | 3.8m | Height | Drill Angle | 45-90 | Size and weight | Working area/Module quantity | 2.5m X2.5 m / 4PCS | Heaviest module/Gross Weight | 176kg / 513kg | - - - - 200M Depth Portable Core Drill Rig Light weight Design with Kubota Engine Packing& Delivery Service In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.

Purchase Process

Company Contact:

• Posted By: Beijing Jincheng Mining Technology Co., Ltd.

• Phone: 86-10-84673566

• Address: Room 1005,Building4,Tianchangy uan,Beiyuan Road,Chaoyang District,Beijing,China, Beijing , Beijing , China

• Email:

• Website: https://www.rockdrillingrig.com

• Business Description: Beijing Jincheng Mining Technology Co., Ltd(JCdrill) located in Beijing, China, for more than 20 years we have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, relative accessories & drilling services.
