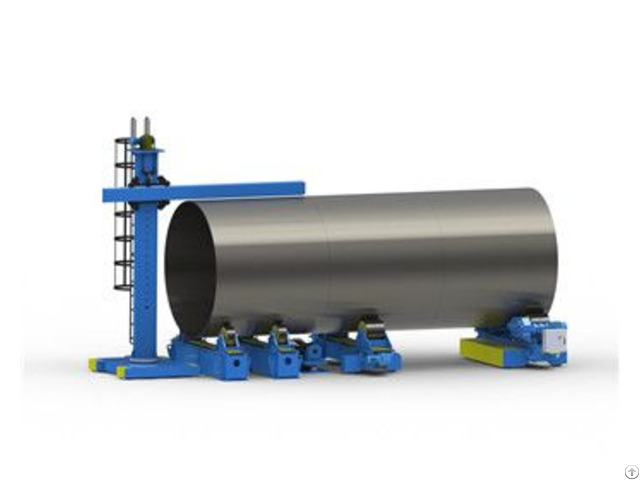

FITZ Growing Line Growing Line - FITZ Series pipe and shells growing line system Stable Speedy Shells Joining and Growing Process

FITZ series shell Growing Line is used for three or more pipes/ shells assembly and welding job.

FITZ Growing Line is equipped with two fit-up roller beds, which have four independent hydraulic height adjustment rollers, to ensure the assembly and welding job speedy with a high performance.

growing line roll system Features A.

Designed and robustly built to withstand rugged work enviroments B.

Fastest system to assemble 1+1 or 1+1+.

+1 sections C.

Four independent hydraulic adjusting roller to align the two sections with each other

D.

Large range center distance to match diffrent diameter of workpiecec

E.

European hydraulic station, Parker oil tube and Schneider elctrical control system

F.

Ideal for: - Wind tower fabrication - Pressure vessels - Pipe assembly

growing line system Technical Paramter Model FITZ-60 FITZ-100

Max loading capacity 60 tons 100 tons

Rotator A & B capacity 30 tons 30 tons

Rotator C (v-roll support) capacity 30 tons 50 tons

Rotator D and E capacity 60 tons 100 tons

Workpiece diameter ? 800- ? 4500 mm ? 850- ? 5500 mm

Rotator A & B roller center-distance adjusting Hydraulic cylinder Hydraulic cylinder

Rotartor C height adjusting Hydraulic cylinder Hydraulic cylinder

Rotator D roller center-distance adjusting Motorized lead-screw Motorized lead-screw

Rotator E roller center-distance adjusting Bolts manual Bolts manual

Rolling speed 100-1000mm/min (VFD) 100-1000 mm/min (VFD)

Rolling motor power 2 X 2.2 kw 2 X 3 kw

Roller material Polyurethane (PU) Polyurethane (PU)

Hydraulic control mode 5 each separatly 5 each separatly

Rotator D horizontal moving speed 250-2500mm/min (VFD) 250-2500mm/min (VFD)

Rails inner gauge 2000mm 2000mm
