High Efficient Column And Boom Manipulator Mig Welding Machine - China

High Efficient Column and Boom Manipulator MIG Welding Machine Quick Details # Column valid stroke 4m, masterboom valid stroke 4m and servant boom valid stroke 3m; Maximum boom valid stroke is up to 7m; # Suitable tank vessel diameter: 600mm---4000mm; # Medium duty type with boom end load up to 120KG; # Motorized rotation and motorized bogie travel; # Motorized cross slider 50*50mm fine adjustment stroke to welding gun; # 180 degree column rotation with manual locking at any position; # Column and Boom Manipulators can realize automatic MIG welding with PANASONIC welding system; # Extensively applied in pressure vessel, metallurgy, power, chemical industry, wind tower, piping system and others lines 2 - Main features # Valid column stroke 4m, maximum boom valid stroke (master boom 4m + small boom 3m) is up to 7m;Robust all steel fabrication; # 180 degree column rotation with manual locking at any position; # Variable speed boom controlled by inverter for both boom elevation and boom retraction; # Boom elevation through geared motor rack and pinion drive with brake; # Elevation and traverse drive mounted on saddle providing for easy access servicing and maintenance; # Machines fully counter balanced by column internal weight, connected to the saddle by heavy duty chain; # Anti-fall device offers safety feature; # Extra wide rollers and unique slideways ensure minimum deflection traversing; # Innovative machined rectangle ways to column ensure that the boom saddle moves smoothly with no vibration.

This reduces wear and tear.

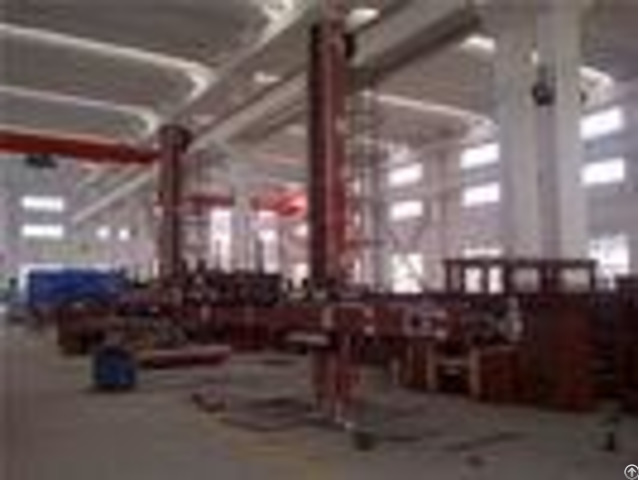

# Motorized cross slider unit to ease the welding head adjustment; # There is safe ladder behind the column for maintenance of equipment; # Limit switch for both boom travel and lift; # Sand blasting treatment to main welding parts before painting; # All motion parts have lubrication system; # Main electric elements are ABB/Siemens brands; # Hand pendant; # Lifting lug on top of column; # Standard color: 3 - Reference photos
