High Pressure Triplex Drilling Mud Pump With Diesel Hydraulic Electric Powered - China

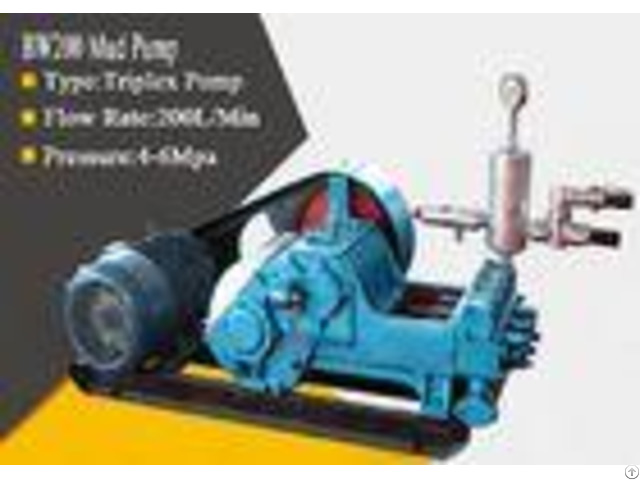

High Pressure Triplex Single Acting Drilling Mud Pump with Diesel / Hydraulic Power BW200 Application BW200 deep hole drilling hydraulic plunger triplex heavy duty slurry pump BW200 Mud Pumps is equipped with drilling rigs to drill holes with mud.

During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground.

BW200 mud pump are mainly used for irrigation agricultural machinery.

the main characteristic is the high pressure, lift much, less engergy consumption, easy operation, high quality and duarable, easy to move, especially for mountain terraces of irrigation.

BW200 type mud pump is a horizontal triplex single acting reciprocating piston pump, which has two bore and fourth gear speed.

Displacement and hole depth can be adjusted according to the application, the deepest can be adjusted to the application, the deepest can be used with 1800meters driling rig, it also can be used cement perfusion.

They are also the main equipment of the geological survey, the main role in the process of core drilling boreholes is to supply fluid(mud or water), making it circulate during drilling and carry rock waste back to the ground, in order to achieve and maintain the bottom hole clean and lubricate drill bits and drilling tools with cooling.

Characteristics 1 - Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction; 2 - Exploration: Coal mining exploration, Ore exploration; 3 - Water well : Small hole diameter water well drilling; 4 - Pipe-installing : Geothermal pipe-installing for heat pump; 5 - Foundation piling: Small-diameter hole foundation piling drilling.

Specification Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in enginee - - - - No.

| Model | Unit | BW200 | 1 | Type | | Horizontal double cylinder reciprocating double acting piston pump | 2 | Cylinder quantity | | 2 | 3 | Cylinder diameter | mm | 80: 65 | 4 | Travel (mm) | mm | 85 | 5 | Pump Speed | Time/min | 145 | 6 | Rate of flow | L/min | 200 | 125 | 7 | Pressure | Mpa | 4 | 6 | 8 | Speed | r/min | 530 | 9 | Pitch of belt pulley | mm | 385 | 10 | Belt pulley | mm | B type, five solts | 11 | Power | | Diesel engine | 12 | Egnine Brand | | Changchai | 13 | Engine Model | | ZS1105 | 14 | Engine Power | KW | 13.2 | 15 | Suction pipe dia.

(mm) | mm | 65 mm | 16 | Scupper pipe dia.

| mm | 37 mm | 17 | Dimensions(LWH) | mm | 1050630820 | 18 | Weight | Kg | 480 | - - - - Service In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.

We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
