Laser Welding Machine For Home Appliance Automobile - China

price: 250000.00 Dollar US$

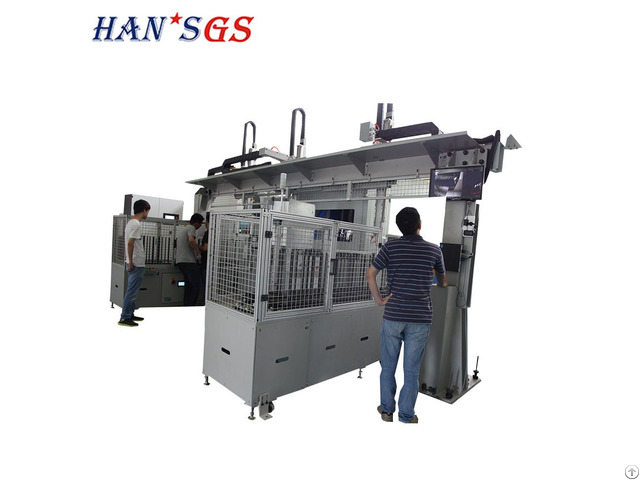

Laser Welding Machine For Home Appliance Automobile

Products Photos Catalog Laser Welding Machine Photos Catalog

Description HAN'SGS-HC03 laser welding machine mainly consists of high power Rofin- DC030 / DC035 laser source, chiller unit, processing machine, automatic preheating machine, loading and unloading manipulator, CNC system and so on.

The control system can realize the integrated control of the whole system such as machine tool, laser, water cooling unit and protective gas unit.

The parameter adjustment is convenient, centralized display and strong anti-interference ability.

The system hardware and software configuration is reasonable, stable and reliable operation, durable, equipment, laser protection to meet the safety requirements of the operator's life.

This gear laser welding machine for the automotive gearbox double gear, double gear shaft laser welding special equipment.

Welding machine main technical parameters

1 - X axis travel: 300mm (servo motor drive).

2 - Y-axis travel: 400mm (servo motor drive).

3 - Z axis travel: 175mm (servo motor drive).

4 - W-axis travel: 100mm (servo motor drive).

5 - U-axis Rotating speed: 7.5 ~ 37.5rpm (i = 80) (servo motor drive).

6 - X, Y, Z axis: positioning accuracy ≥ ± 0.02mm.

7 - Repeat positioning accuracy ≥ ± 0.01 mm.

8 - Maximum operating speed: 5 m / min.

Control system The welder host uses SINUMERIK 828D BASIC M control system, compact structure, set of display, CNC keyboard and CNC system in one.

A small number of interfaces and cables ensure that the system is easy to use.

The operation panel is durable and it's made of die-cast magnesium alloy.

In the harsh working conditions, SINUMERIK828D can still maintain a good running state.

The SINUMERIK 828D is completely maintenance-free due to the abandonment of consumable parts such as fans, hard drives and spare batteries.

With advanced NV-RAM technology, even after long downtime, the machining program can still be kept intact.


Company Contact:


  • Phone: 15871374108

  • Address: No.72,Optical valley Avenue, East Lake High-Tech Development Zone,Wuhan., wuhan , hubei , China

  • Email: Email


Published date: June 20, 2018

  • Business Description: Wuhan Hans Goldensky Laser System Co., Ltd is subsidiary company of Han's Laser Technology Industry Group Co., Ltd, (stock code: 002008).

    We are high-tech enterprise specialized in R&D, manufacture and sales for complete equipment of high-power laser source, laser cutting, laser welding, laser fusion covering, laser heat-processing and high-speed laser punching machine.

    We also provide automatic processing solving plans.
