Multifunctional Trailer Mounted Water Well Drilling Rig With 80 Rpm Rotation Speed - China

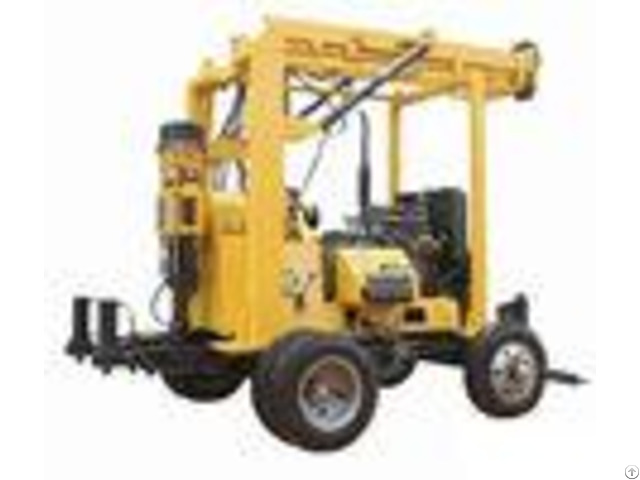

80 rpm Rotation Speed Trailer Mounted Water Well Drilling Rig 300mm Dia 600m Drilling Depth XYX-3 multifunctional trailer mounted portable water well drilling rig with 600m and 300mm drilling capacity Introduction XYX-3 Portable water well drilling rig is a portable drilling rig, adopting the latest technology for diamond drilling.

It is widely used for water well, geological exploration, mining exploration, geothermal well, irrigation well, bridge conservancy, etc.

Features 1 - Power supply: diesel engine or electric motor as options; diesel engine is started by electric battery.

2 - Mobile base: It can be mounted on trailer, crawler or truck for easy move and different drilling environment; 3 - Automobile transmission assembly: with 10 grades forward rotation speed and 2 grades reverse rotation speed, can meet various stratum drilling requirements.

4 - Mud pump: designed wih BW-200 or BW-250 mud pump, XY-600F is with much larger water flushing rate, with better scraps cleaning effects.

5 - For different stratum: soil, sand, gravel, rocks.

XY-600F can work with alloy bit for soil and sand, PDC bit for gravel, and diamond bit for rocks and hard rocks.

6 - To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque.

7 - The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility.

8 - To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.

9 - To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.

Specification - - - - Drilling depth | m | 100-600 | Open hole caliber | mm | 300 | End hole caliber | mm | 75 | Drilling rod | mm | 60 | Drilling angle | | 90-65 | Spindle | Spindle forward speed | r/min | 57-1024 | Spindle reverse speed | r/min | 45-212 | Spindle stroke | mm | 560 | Spindle inner diameter | mm | 96 | Spindle lifting capacity | KG | 6000 | Hoist | Single line lifting speed | m/s | 0.515 0.894 1.421 1.948 | Hug floodgate belt width | mm | 90 | Tightrope caliber | mm | 12.5 or 14 | Hoist single line lifting capacity | KG | 3000 | Reel caliber | mm | 200 | Reel cubic measure | m | 30 | Mud pump | Horizontal double actuator | Displacement | L/min | 200, 125 | Triangle conveyer belt type | | B5 | Work pressure | Mpa | 4.6 | Water inlet caliber | mm | 65 | Water to exit caliber | mm | 37 | Oil pump | Duplex gear oil pump F532/F314 | Front displacement, pressure | | 32L/min 20Mpa | Behind displacement, pressure | | 14L/min 20Mpa | Drilling rig Power | Diesel engine | Hp | 395Kz 41HP | Electric motor | KW | Y180L-4 30KW | - - - - Any more technical question of this borehole drilling rig please feel free contact with our water well drilling rig department:
