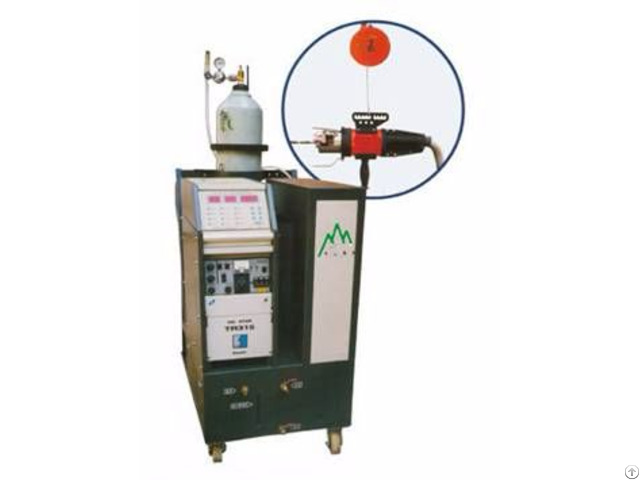

Pipe Prefabrication Automatic Tube Sheet Welding Machine - China

-Automatic pulse tube sheet welding machine(GTAW/TIG)

Model No: PAAWM-80A

Technical parameters:

Welding source

-Model of the welding source: Panasonic TIGSTAR400

-Type of power source: IGBT inversion

-Welding current: 4-315A

-Duty cycle: 315A 60% ; 244A 100%

-Rated load voltage: 70V

-Rated power: 9.5 kw

-Fluctuation range of input voltage allows: 380v±10%

-Frequency: 50/60Hz

Welding head

-pipe diameter: Φ8～Φ80mm(or as per request)

-Pipe wall thickness: 0.5-6.5mm

-The maximum length of tube elongation: 10mm

-The maximum depth of tube Indentation: 2mm

-Feeding Wire adjustable angle: ≤45°

-Feeding speed: 0.1～1.5m/min

-Dia of filler wire: 0.8mm

-Rev speed of head: 0.15～6r /min

-Welding speed: 50～150mm/min

-Tungsten adjustable angle: ≤45°

-Positioning spindle cooling: Automatic forced cycle water-cooled

Program-controlled system

-Welding current adjustment range: 4～315A

-Current rise time: 0.1～20s

-Current fall time: 0.1～20s

-Pulse Frequency: 0.5～500Hz

-Duty cycle adjustment range: 10%～50%

-Aspirated time in advance：1～20s

-Time lag aspirated: 2-20s

-Feeding speed adjustment range: 0～1.5m/min

-Welding head rev speed adjustment range: 0.15～6r/min

-Built-in storage capacity of 100 Welding Code

-Can partition paragraph: 1-6 paragraph

-Display: LCD

Gantry and 5D system

-Lateral movement stroke: 16000mm

-Vertical Movement stroke: 16000mm

-Axial movement stroke: 300mm
