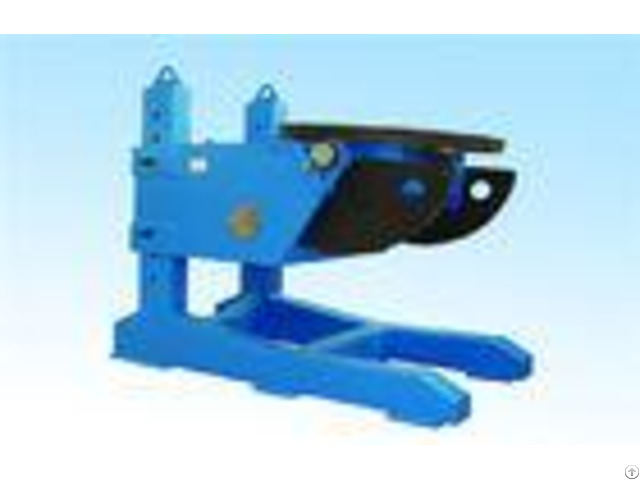

Rotatry Benchtop Welding Positioner 6000KG Manual Elevating Quick Detail # SHB lifting welding positioner can adjust table height according to working requirement.

# Working table can do three acts as revolving infinitely and tilted within degree 0120 and height adjusting, which make the tank at ideal position.

# Can add a chuck in the welding table to fix (clamp) the work-piece well.

# With T-slots on the table surface for clamping work-piece.

1 - Introduction Elevating&Rotary welding positioners can be lifted by crane and fixed by pin.

These rotary welding positioners are designed for maximum loads of 1000KG to 6, 000KG have universal applications in the manual and automatic welding of circumferential seams and in the accurate positioning of work-pieces, and extensively applied in pressure vessel, metallurgy, power, chemical industry, metal structure and others lines.

We also provide tailor-made rotary welding positioners according to your special requirements.

2 - Main Parameters - - - - Model | SB10 | SB20 | SB60 | Max loading KGs | 1000 | 2000 | 6000 | Rated eccentricity mm | 150 | 150 | 120 | Rated center of gravity mm | 350 | 350 | 350 | Worktable diameter mm | 900 | 1200 | 1500 | Tilt angle | 0135 | 0135 | 0120 | Rotation speed rpm | 0.121.2 | 0.050.5 | 0.050.5 | Tilt speed rpm | 0.29 | 0.25 | 0.2 | Rotation motor power KW | 1.1 | 1.1 | 2.2 | Tilt motor power KW | 1.1 | 1.5 | 3 | Max rotation diameter of work-piece in 90 mm | 3000 | 3200 | 4200 | Earthing Amperes A | 1000 | 1000 | 1000 | Main frame length mm | 1500 | 1780 | 2760 | Main frame height mm | 1670 | 1800 | 2600 | Main frame width mm | 1220 | 1320 | 1457 | Power supply | 380V 50HZ 3P or tailor made | Above are our standard models and parameters, and it can be designed and manufactured on request.

| - - - - *We reserve the right to alter specifications without prior notice.

3 - Main features The standard models of our elevating welding positioners have the following features: # This welding positioned mainly consists of machine frame, lifting seat, worktable, tilting transmission device, rotation transmission device and electric control system, etc; # Manual elevating which elevated by crane and fixed by pin; # Free standing, robust all steel fabrication; # Variable speed table rotation controlled by inverter; # Fully machined turntable of various sizes with centering grooves and T-slots; # Sand blasting treatment to main welding parts before painting; # All motion parts have lubrication system; # Main electric elements are ABB/Siemens brands; # Hand pendant with Forward&Reverse Rotation, Tilt UP&DOWN, and speed potentiometer are standard; # Efficient built-in earthing; # Lifting lug; # Standard color: Optional features: # Square worktable; # Extension arms; # Foot pedal; # Extensive system accessories such as three-jaw chucks; # Interface for integral control with welding column&boom; 4 - Supply range # Welding positioner (including machine frame, worktable, lifting seat, etc) 1set # Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set # Technical documents (with manual book, conformity certificate, packing list, etc) 1set 5 - Reference drawing 6 - Reference photo 7 - Comparative advantage # ISO9000&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged;
