Self Aligning Pipe Welding Rotator Pu Rollers 40t With Single Drive - China

Self Aligning Pipe Welding Rotator PU Rollers 40T with Single Drive Quick Detail # 40T self - aligning rotator with PU rollers; # Steplessly controllable rotary drives by means of A.C. motor drive via self-locking worm gear reducers; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; # Quick connections joints, easy electric connections; # Roller distance is self-aligned and roller surrounding angle among 45110; # Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard; # All motion parts have lubrication system; 1 - Main Parameters - - - -

Item | Parameters | Model | HGZ40 | Rated load (T) | 40 | Load when more than D3 (T) | 40 | D3 (mm) | 1388 | Load when less than D3 (T) | 30 | Suitable work-piece | d mm | 600 | D mm | 4200 | Roller Dia.

and Width | PU roller | D1 | 400 | W3 | 120 | Metallic roller | D2 | 394 | W4 | 40 | Linear speed (m/h) | 6-60 | Way of speed control | VFD | Motor power (kW) | 3 | Roller distance (mm) | A | 1600 | Power supply | 440V 60HZ 3P | - - - - 2 - Introduction The series turning rolls are a unique self-aligning roller.

When loading your work piece into the rolls, four self-aligning wheels automatically move into the position that provides the best support for the work piece.

The self-aligning rollers which maintain a constant centerline, can rotate work pieces with diameters as small as 600mm up to 4200mm and weights ranging from 5 ton 200 metric tons.

The PU/rubber-tired rollers use a steel support ring in combination with the rubber to support the load.

This design protects the PU/rubber from overloading and decreases the overall roller width.

Powering this unit is adjustable frequency AC Drive and one (1) inverter duty AC motor.

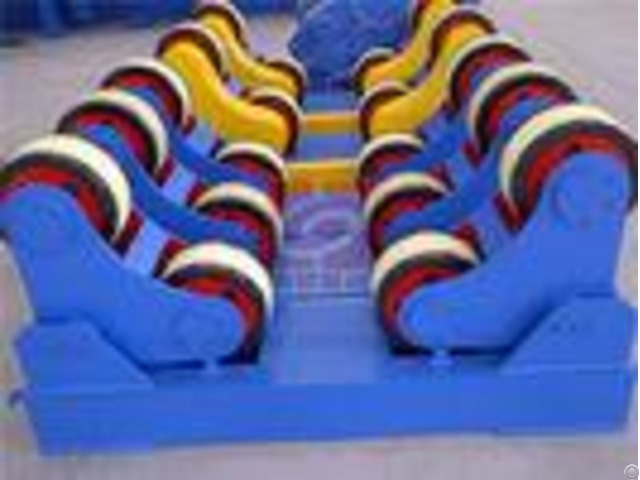

3 - Reference Photos 4 - Comparative advantage # ISO9001&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged; Tag: pipe welding rotator, tank rotator, self -aligning turning roll
