Steel Fabrication Shot Blasting Machine Surface Cleaning Of H Beam - China

Steel Fabrication Shot Blasting Machine Surface Cleaning of H - beam Quick Details # Suitable sizes; 800mm*1600mm; # H-beam shot clearing&blasting machine is specially designed for the surface cleaning and intensifying of H-beam; # Totally 8 shot blaster equally arranged on both sides of blasting area; # Conveyor feed in and feed out which is very convenient and in very high efficiency; # Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using; 1 - Introduction H-beam shot clearing&blasting machine is specially designed for the surface cleaning and intensifying of H-beam.

It can realize a smooth surface of certain roughness and increase the adhesion of paint film, improving the surface quality and anti-corrosion effect.

There are totally 8 shot blaster equally arranged on both sides of blasting area.

They will be installed at the best position according to the characteristics of H-beam.

There is a protecting cover lining on the internal wall of the box, which is easy to replace.

The dust removing system adopts the internationally advanced drum type device, characterized by high efficient.

The dust emission meets the relevant requirement of the country regarding environmental protection.

2 - Main Parameters - - - - Model | HP8016 | HP1018 | HP1020 | Suitable work-piece sizes (mm) | W*H | 800*1600 | 1000*1800 | 1000*2000 | L | Quality standard | Surface clearness | A-B Sa2.0-Sa2.5 | Surface roughness | 1550um | Shot blaster | Quantity (piece) | 8 | Shot blasting quantity (kg/min) | 8*200 | 8*250 | 8*250 | Power (kW) | 8*11 | 8*15 | 8*15 | Input and output conveyor | Allowable load (kg/m) | 1000 | Feeding speed (m/min) | 0.44 | Ventilation capacity (m/h) | 15300 | 20400 | Shot recycle quantity (t/h) | 96 | 120 | 120 | Depth of pit (mm) | 2090 | 2210 | 2210 | Total power (kW) | 137 | 176.9 | 183.9 | Power supply | AC380V, 50HZ, 3P or tailor made | Above are our standard models and parameters, and it can be designed and manufactured on request.

| - - - - *We reserve the right to alter specifications without prior notice.

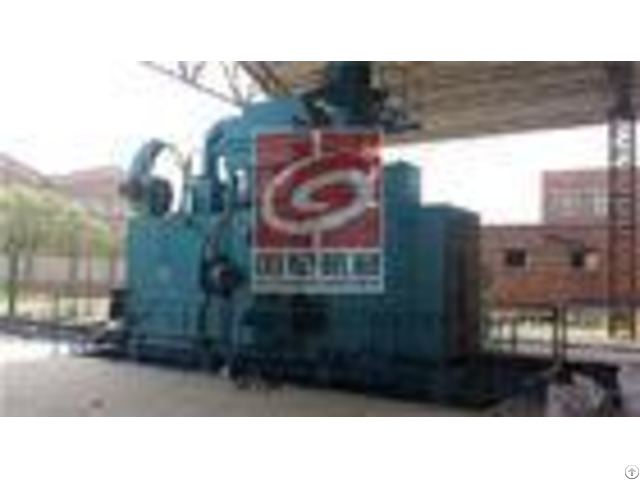

3 - Main features The standard models of our H-beam shot blasting machines have the following features: # Conveyor feed in and feed out which is very convenient and in very high efficiency; # 8 shot blasters to ensure good cleaning quality; # Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using; # Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting; # All motion parts have lubrication system; # Main electric elements are ABB/Siemens brands; # Lifting lug; # Standard color: 4 - Reference photo 5 - Comparative advantage # ISO9000&CE certified; # International warranty; # Punctual delivery; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged;
