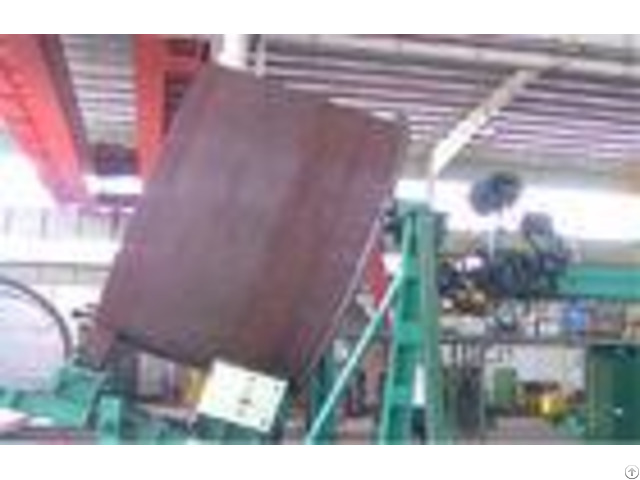

Tilt Hydraulic Welding Positioner Turntable Flange / Wind Tower Quick Detail # Used for the welding of flange of tank vessel, wind tower, pipe, etc; # Hydraulic system to tilt the rotator to specified angle to ease the welding processes; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; 1 - Introduction This series welding rotator is specially used for flange welding.

It can put the welding seam to the best position by tilting it and then furnish the SAW welding process.

Its convenient and easy.

We also tailor made this special pipe welding rotator upon your requirements.

Please communicate with us for more details.

2 - Main Parameters - - - - Model | HGK20T | Max loading T | 20 | Suit diameter mm | Min | 1000 | Max | 4000 | PU Roller mm | Dia | 350 | Width | 200 | Linear speed mm/min | 1001000 | Tilt angle | 20 | Speed Control | VFD | Motor power kW | 2*1.1 | Above are our standard models and parameters, and it can be designed and manufactured on request.

| - - - - *We reserve the right to alter specifications without prior notice.

3 - Main features The standard models of our roller beds or pipe welding rotators have the following features: # Steplessly controllable rotary drives by means of A.C. or D.C. motor (on request) drive via self-locking worm gear reducers; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; # The steel structure rack is the loading rack, make the active of support welding turning roll to load the weight of work-piece and adjust the tilt angle, avoiding the drift of work-piece; # Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting; # Upper surface of base is treated with fine machining; # Roller distance is lead-screw adjustable and roller surrounding angle among 45110; # All motion parts have lubrication system; # Main electric elements are ABB/Siemens brands; # Hand pendant with Forward-Stop-Reverse and speed potentiometer are standard; # Lifting lug on the base of roller bed; # Standard color: Optional features: # Roller material options: Metallic or Rubber roller; # Interface for integral control with welding column&boom; # Foot switch; 4 - Supply range # Driving turning roll 1set # Idle turning roll 1set # Steel structure rack 1set # Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set # Technical documents (with manual book, conformity certificate, packing list, etc) 1set 5 - Reference photo 6 - Comparative advantage # ISO9000&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged;
