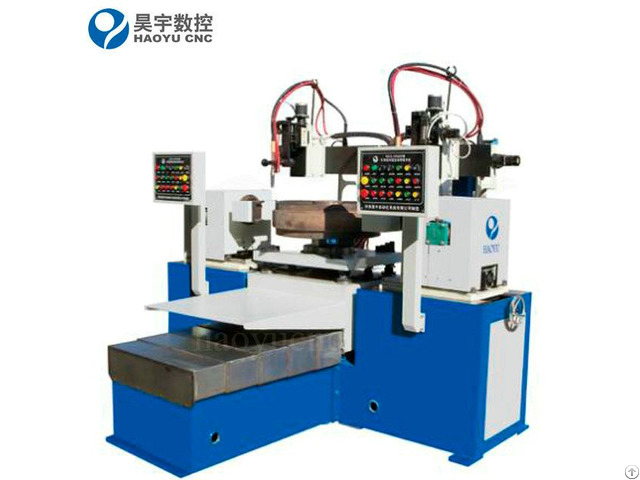

Track Idler Single Station Welding Machine - China

Track Idler Single Station Welding Machine 1 - Main Technical Requirement.

The material of rim is 35#, quenching and high temperature tempering(HB167~235).

The appearance and size must meet the requirement, not allowed to have undercut, welding tumor, arc crater, burn through, collapse, surface pores, surface cracks and other defects in the appearance.

The interior of welding seam should not have the defects of slag inclusion, air hole, non-through welding, non-fusion and internal cracks.

Complete the automatic welding requirements for the assembly of track idler.

The workpiece needs spot welding in advance.

It needs stable and continuous welding process, convenient clamping and loading.

2 - Basic Conception Welding torch is fixed, while the workpiece is rotating.

Welding position is horizontal.

The machine has high voltage and slow wire feeding performance, which guarantees reliable arc igniting.

Machine also has low welding voltage and low current for filling crater.

Pneumatic loading and unloading mode, turn the workpiece 180°.

The process of welding is finished automatically.

Reduce the labor intensity of workers.

PLC is used to control the whole machine operation, the rotation speed of the workpiece is controlled by AC frequency regulator, stepless adjustment, improve the reliability of machine.

The welding mode and welding specification can be preset, saved and recalled.

Via touch man-machine interface, the parameter modification and status alternation can be done conveniently.

3 - Electric Control System

rotation speed 0.2-2r.p.m.

stepless adjustment

motor power 1.5KW

compressed air 0.4~0.6MPA

Welding Torch Adjustment lifting distance 100mm

left-right distance 100mm

dip angle 25°~ 60°

Welding Specification welding voltage 15-36v.

stepless adjustment

welding current 50-500A, 60% duty cycle

welding wire diameter Φ0.8--Φ1.6MM Using OMRON PLC as control core, control the implementation of the welding program.

Stable system, simple structure, easy maintenance.

Using 4-axis CNC control system to control left-right and up -down positioning of two welding torches.

Workpiece rotation adopts Japan Omron 1.5kw inverter.

The rotation speed is adjusted by controlling driver to adjust motor speed.

Stepless adjustment, low failure rate, suitable for long time use.

Taiwan Wei Lun MT-6070I 7- inch touch screen as the input and output interface, offer modifiable initial account and password.

Welding length, arc igniting, arc ending time, welding current, welding voltage, welding speed, preheating time, oscillating frequency, oscillating scope, oscillating time, torch lifting time, torch lifting distance, torch lifting times can be all input through the interface.

Rotary closed-loop encoder will detect welding length.

Position detection: torch position is detected by imported non-contact switch .

Integrated control panel box.

Control button, touch screen, welding specification are in one panel, easy to be used and operated.
