Welding Tank Rotators For Sand Blasting Pipe Turning Roll - China

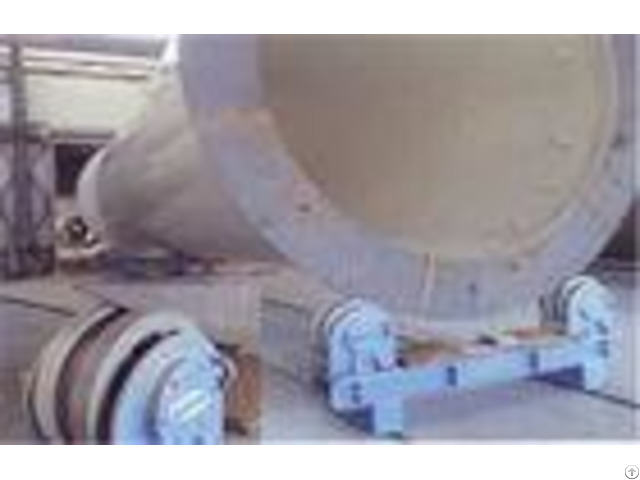

Welding Tank Rotators for Sand Blasting, Pipe Turning Roll Quick Details # Special rotator with metallic wheels for sand blasting; # Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear reducers; # Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting; # Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard; 1 - Introduction This is special roller beds for tank/pipe sand blasting processes.

While, it also can be considered as common turning rolls in your production.

We only have 60T&100T as our standard roller beds.

If you have special requirements, please contact us.

2 - Main Parameters - - - - Model | HGK60PS | HGK100PS | Max loading T | 60 | 100 | Suit diameter mm | Min | 1000 | 2000 | Max | 4000 | 4500 | Metallic Roller mm | Dia | 500 | 500 | Width | 400 | 480 | Linear speed mm/min | 1001000 | Way of speed control | VFD | Boogie travel speed mm/min | 3003000 | Roller motor power kW | 2*1.5 | 2*2.2 | Boogie motor power kW | 2*0.75 | 2*1.1 | Inner rail span mm | 1930 | 2000 | Above are our standard models and parameters, and it can be designed and manufactured on request.

| - - - - *We reserve the right to alter specifications without prior notice.

3 - Main features The standard models of our roller beds for sand blasting have the following features: # This special turning rolls consist of one driving bolt adjustable turning roll, one idle bolt adjustable turning roll and electric control system, etc; # All the connectors are designed with safety protections and improved airproof performance to ensure the machine can work in severe surroundings; # Special structure design to avoid sand deposit; # Steplessly controllable rotary drives by means of A.C. anti-explosion motor drive via self-locking worm gear reducers; # Schneider or Panasonic inverter to realize VFD speed control and synchronous rotation of rollers; # With travel boogie, very convenient to transfer the material; # PU wheels; # Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting; # Fine machining to upper surface of base; # Roller distance is bolt adjustable and roller surrounding angle among 45110; # All motion parts have lubrication system; # Main electric elements are ABB/Siemens brands; # Hand pendant with Forward-Stop-Reverse, boogie travel buttons and speed potentiometer are standard; # Lifting lug on the base of roller bed; # Standard color: Optional features: # Metallic wheel; # Foot switch; # Servo drive; 4 - Supply range # Driving turning roll 1set # Idle turning roll 1set # Electric control system [including 1piece of electric control cabinet, 1piece of remote control box with cable 6m] 1set # Technical documents (with manual book, conformity certificate, packing list, etc) 1set 5 - Reference photo 6 - Comparative advantage # ISO9000&CE certified; # Professional and experienced engineer team to ensure the advanced design about structure and electric; # Experienced and skilled workers to care for each work flow from material cutting, welding, grinding to final assembly and testing to ensure high machine quality; # Professional and experienced after sale service team to guarantee quick and satisfied installation, commissioning or service; # Optimum materials and outsourcings to ensure the best performance; # Commissioning and testing before delivery; # Factory inspection is encouraged;
