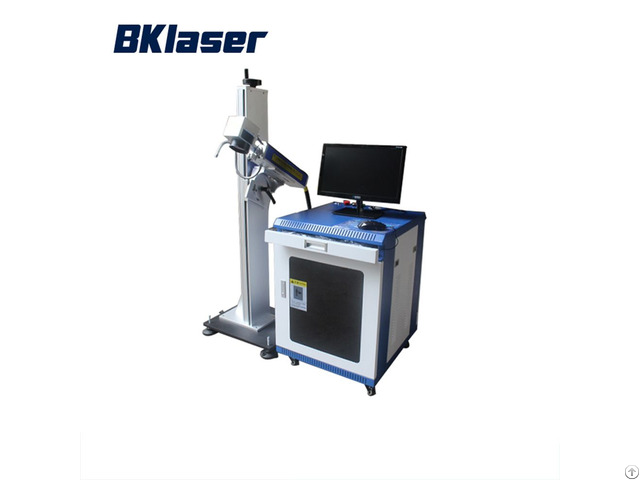

20w High Quality Split Model Fiber Laser Marking Machine For Plastic Bottle - China

Technology parameter: Model BK-G20FT BK-G30FT BK-G50FT

Power 20W 20W 50W

Laser Wavelength 1064nm

Frequency Range 20-80KHZ

Beam Quality <2 <3 <5

Engraving Line Speed ≤7000mm/s

Minimum Width 0.01mm

Minimum Character 0.15mm

Repeat Accuracy ±0.002

Power supply 90-260V/50Hz-60Hz

The Highest Marking Workpiece 1000mm( Scalable)

Power Consumption 500W 1000W

Engrave Depth ≤0.3mm ≤0.5mm ≤1.0mm

Operation System WinXP/Win7

Cooling Mode Built in air cooling

Engrave Range 110*110mm(standard) 175*175mm, 200*200mm, 300*300mm (optional)

File Formats All fonts in WINDOWS system

Contour Size of The Unit(s) Contour Size : 1200*1000*1450mm (width*Depth*Height) Movements itinerary : 1200mm operating platform : 320*250mm Machine Total Weight 150Kg

Features: 1 - Fiber laser marking machine can be applied to a wide range, regardless of the size of the workpiece, almost all can set up marking.

The model is highly scalable, according to the user needs, choose to set up a table lift, single-arm lift frame and set up in the user site line operations.

The model is highly mobile, easy to move back and forth in multiple marking sites.

Split design, reasonable size design, especially to meet the large size and small parts of the mixed requirements and a wide range of external processing business characteristics.

2 - Processing speed is 2-3 times the traditional laser marking machine.

3 - Air cooling fiber laser, no consumables, low maintenance, high photoelectric conversion rate, small power consumption (less than 800W), the use of low cost.

4 - Integrated pulley design with reasonable design which can be easy to moved, it adapt to a wide range of factory layout and flexible product laser printing.

5 - It has strong environmental adaptability and it can work continuously under the environment of shock, shock, dust and humidity.

It is easy to realize the coupling with the optical fiber, and can realize long distance work.

6 - It can mark bar code, two-dimensional code, text, graphics, regular and irregular transaction.

7 - Software runs on WINDOWS platform, Chinese / English interface, compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as PLT, PCW, DXF, BMP and so on, and also can use SHX and TTF fonts directly.
