Automated Multicore Power Cable Stripping Machine - China
price: check with company for price

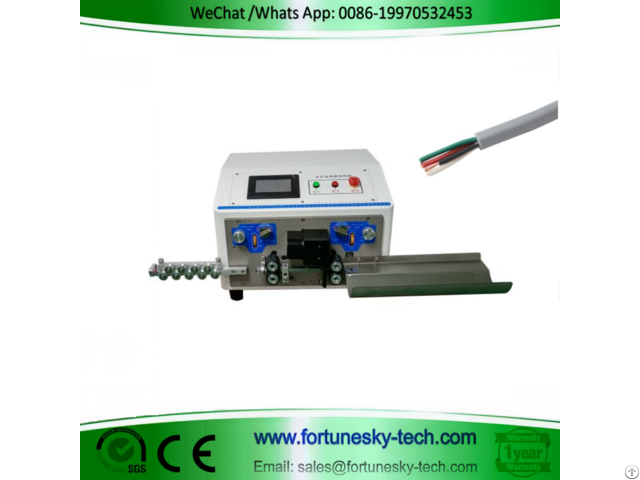

The JT-505: Revolutionize Cable Stripping with Multicore Efficiency
The JT-505 Automatic Multicore Power Cable Stripping Machine redefines efficiency in cable processing.
This advanced equipment tackles power cables with ease, simultaneously cutting and stripping the outer sheath and core wire insulation.
Unmatched Versatility: Multicore Processing: Process 2 to 8 cores simultaneously, ideal for lamp cables, power cords, flat power cords, and USB data cables.
Broad Cable Compatibility: Handles multi-core power cables (2-8 cores), PVC power cords, and rubber cords, offering a wide range of application possibilities.
Precision and Efficiency: Automated Operation: Simplify your workflow with automatic cutting and stripping, ensuring consistent, high-quality results.
Adjustable Stripping Lengths: Precisely remove insulation with head stripping from 0.1-250mm and tail stripping from 0.1-70mm.
High Processing Speed: Process 600-1000 strips per hour, ideal for high-volume production environments.
User-Friendly Design: Intuitive Touchscreen: The 4.3-inch touchscreen with bilingual (Chinese and English) options simplifies operation.
Compact Design: The space-saving design integrates seamlessly into your workspace.
Technical Specifications: Model: JT-505
Dimensions: 460mm x 460mm x 380mm
Weight: 38kg
Display: 4.3-inch Touchscreen (Chinese and English)
Power Supply: AC175V-250V, 50/60Hz
Power Consumption: 80W-480W
Cutting Length: 0.1mm-99999.9mm
Stripping Length: Head: 0.1-250mm, Tail: 0.1-70mm
Suitable for Wire: Multi-core power cable (Core wire: 2-8 pcs), PVC power cord, rubber cord, etc.
Tool Material: Tungsten Steel/Imported High-Speed Steel
Drive Mode: Four-wheel Drive, Roller Feed
Wire Stripping Rate: 600-1000 strips per hour (adjustable)
Wire Pressure Adjustment: Manual Pulley Adjustment
Pulse Equivalent: 1 pulse = 1 step
In-line Error: 0.02mm
Blade Motor Accuracy: 0.1mm per step (Silent Hybrid Stepper Motor)
Additional Features: Automatic outgoing line, automatic incoming line, timing start
The JT-505 is a powerful and versatile solution for multicore cable processing.
Its ability to handle multiple cores simultaneously combined with its precision and user-friendly features make it ideal for boosting productivity and achieving consistent, high-quality results.
Company Contact:
- Posted By: Shenzhen Fortune Sky Technology Co.,Ltd
- Phone: 0086-19970532453
- Address: 502,77th Blog,Kong Fa New Villiage, Shenzhen , Guangdong , China
- Email:
- Website: https://www.fortunesky-tech.com
Published date: September 8, 2024
- Business Description: Shenzhen Fortune Sky Technology Co., Ltd mainly supplies variety of fully automatic wire stripping machines, pneumatic cable stripping machines, fully automatic tube cutting machines, scrap cable stripping machine for cooper recycling, fully automatic terminal crimping machines, plastic injection moulding machines.
Established in 2008 Fortune Sky has steadily grown into a major specialist for wire harness processing and automatic tube & tape high-speedy cutting.
Through strong concentration, strict supervision, sense of responsibility, Fortune Sky has been able to provide good performance top quality exceptional price products to meet clients demanded.
We are a short-history company while won a glorious reputation backed by our customers, some having enjoyed our services since we started.
Our intentions from day one has been to offer high quality products and a specialist professional service.
We will continue to provide this with our experienced staff and team.
“The same equipment we compare quality, the same quality we compare price, the same price we compare service”! We are guided by the principle of “honesty, pursuit of excellence, dedication to service excellence, ” innovation and development, and continue to train a large number of outstanding professionals, more quickly, more professional, more sincerely at your service!Established in 2008 Fortune Sky has steadily grown into a major specialist for wire harness processing and automatic tube & tape high-speedy cutting.
Through strong concentration, strict supervision, sense of responsibility, Fortune Sky has been able to provide good performance top quality exceptional price products to meet clients demanded.
We are a short-history company while won a glorious reputation backed by our customers, some having enjoyed our services since we started.
Our intentions from day one has been to offer high quality products and a specialist professional service.
We will continue to provide this with our experienced staff and team.
