Introducing the JT-501: Your High-Volume Wire Processing Solution

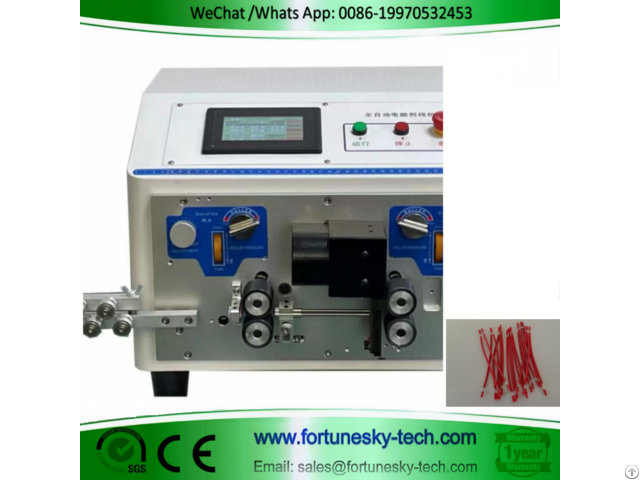

The JT-501 automatic dual wire stripping machine is a game-changer for high-volume wire processing.

This versatile machine tackles a wide range of wires, delivering efficiency and precision for various applications.

Intelligent Control and User-Friendly Design: Smart Operation: The cutting-edge 32-bit intelligent control system simplifies operation with a user-friendly touchscreen interface.

Store hundreds of settings for quick retrieval, saving you time and setup hassle.

Wide Wire Compatibility: Handles a variety of wires, including electronic wires, PVC wires, braided wires, silicone wires, high-temperature wires, Teflon wires, and insulated wires.

Adjustable Precision: Achieve accurate results with adjustable cutting and stripping lengths to meet your specific needs.

Boosting Productivity: High-Speed Processing: Process 3000-5000 wires per hour, ideal for large-scale production environments.

Compact Footprint: The compact design saves valuable workspace.

Enhanced Efficiency: Additional features like automatic shutdown, wire infeed/outfeed, and timing start streamline your workflow.

Technical Specifications: Model: JT-501

Dimensions: 420mm x 345mm x 297mm

Weight: 28kg

Display: 4.3-inch Touchscreen

Power Supply: AC175V-250V, 50/60Hz

Power Consumption: 120W-220W

Cutting Length: 0.1mm-99999.9mm

Stripping Length: Head: 0.1-50mm, Tail: 0.1-30mm

Cutting Core: 0.1-2.5mm²

Cutting Tolerance: 0.002 x L(mm)

Intermediate Stripping: 13 positions

Conduit Diameter: 1.5mm-9mm

Tool Material: Tungsten Steel/Imported High-Speed Steel

Drive Mode: Four-wheel Drive

Wire Stripping Rate: 3000-5000 strips per hour (adjustable)

Wire Pressure Adjustment: Manual Pulley Adjustment

Pulse Equivalent: 1 pulse = 1 step

In-line Error: 0.02mm

Blade Motor Accuracy: 0.03mm per step

Inlet and Outlet Motor Precision: Silent hybrid stepper motor (0.1mm per step)

Additional Features (Optional): Automatic shutdown due to lack of wires, automatic outgoing wires, automatic incoming wires

The JT-501 is a powerful solution for high-volume wire processing.

Its intelligent control system, user-friendly design, and efficient features make it ideal for various applications, ensuring accurate and productive results.
