Automatic H05rn F 3 Conductor Power Cable Strip Twist Trim Tinning Machine - China

The HWN-06s: Revolutionizing Power Cable Production - All-in-One Efficiency

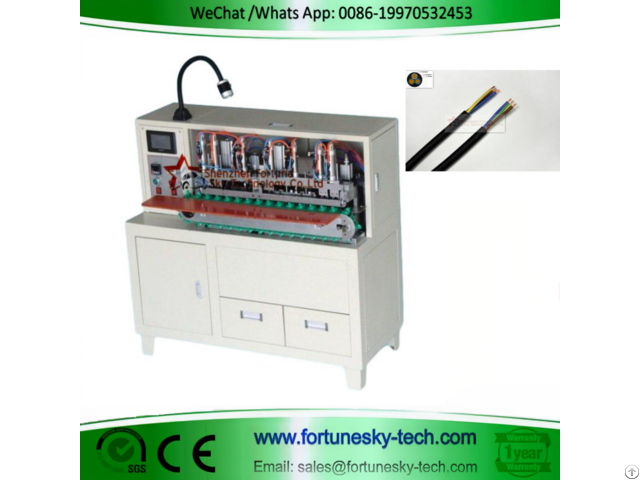

The HWN-06s power cable 3 cores stripping twisting soldering machine represents a groundbreaking advancement in power cable manufacturing.

This ingenious machine streamlines the entire production process, integrating wire separation, stripping, twisting, tinning, and cutting into a single, automated solution.

Key Advantages: Unmatched Efficiency: Eliminates the need for multiple workstations and reduces labor costs by automating the entire cable processing workflow.

Superior Quality and Consistency: Advanced technology ensures consistent, high-quality results with every cable processed.

Simplified Operation: The user-friendly design with a touchscreen interface promotes safe and efficient operation, even for novice workers.

They can be skillfully operating the machine in a short time.

Reduced Maintenance Needs: Simple and fast maintenance procedures allow regular upkeep to be completed by ordinary workers, minimizing downtime.

Significant Labor Savings: Fully automates various processes, replacing the need for 3-4 workers traditionally required in a manual setup.

Product Features: Ergonomic Design: Prioritizes operator safety and comfort by aligning with natural human movements.

High-Quality Components: Employs high-precision parts from internationally renowned brands, guaranteeing extended machine lifespan.

Adjustable Processing Parameters: Provides control over processing speed and stripping length through the user-friendly touchscreen interface.

Broad Wire Compatibility: Handles a wide range of wires (including spt-1, spt-2, h03vvh2-f, h05vvh2-f, RVV, VFF) with customization options available.

Note: Currently processes up to 3 cores.

Impressive Processing Speed: Delivers outstanding production rates of 1700-2000 pieces per hour.

Flexible Wire Sizing: Accommodates wire stripping sizes from 2mm to 9mm and tinning sizes from 2mm to 9mm.

Efficient Sheath Stripping: Capable of removing sheath up to a maximum length of 150mm.

Technical Specifications: Model No: HWN-06s

Power Supply Voltage: AC220V / 50Hz (customizable)

Machine Function: Wire separation, stripping, twisting, tin soldering, neat cutting

Applicable Wire: spt-1, spt-2, h03vvh2-f, h05vvh2-f, RVV, VFF (customizable)

Processing Speed: 1700-2000 pieces / hour

Wire Stripping Size: 2mm-9mm

Wire Tinning Size: 2mm-9mm

Sheath Stripping: Max 150mm

Power Form: React in chain

Machine Size: 1200mm x 630mm x 1300mm

Net Weight: 300 Kg

The HWN-06s power cable 3 cores stripping twisting soldering machine is a perfect solution for manufacturers seeking to revolutionize their power cable production.

Its exceptional efficiency, superior quality control, user-friendly design, and significant labor savings make it a valuable asset for any production line.
