Diamond Mesh Expanded Corner Beads - China

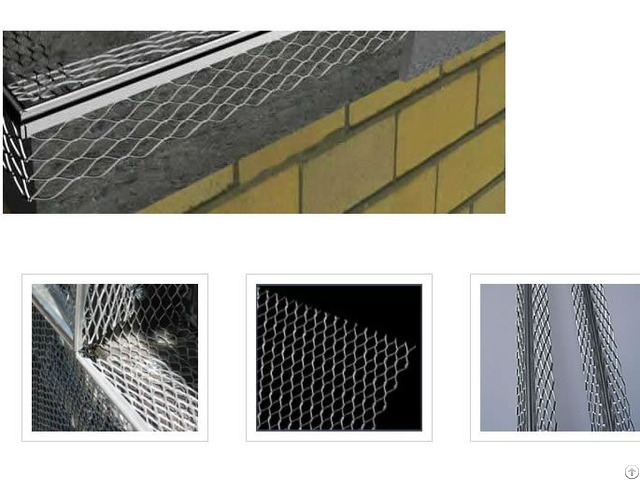

Also known as Diamond Mesh Corner Beads or Corner Guards.

Popularly made of expanded metal sheets, it has a opening pattern of diamond / rhombic mesh.

The expanded metal flange grounds can be 3/8", 1/2", 5/8", or 3/4" (1", 1-1/8", 1-1/4" and 1-1/2".

Wide Expanded Metal Sheet Flange Beads provide additional rigidity and strength with its reinforced flanges.

Diamond mesh angle bead protector serves as a plastering stop to ensure a neat finish.

It is designed to provide strong corner reinforcement for conventional plaster applications.

A solid metal nose provides a straight, rigid ground and the 2-5/8" flanges can be easily flexed over irregular, uneven surfaces.

The expanded beads are easily installed using standard industry practice.

Plaster keys near solid nose provide reinforcement where needed most to ensure straight corners.

Yezhi offers this product in both galvanized steel and zinc plating for your choice.

Wide Expanded Metal Sheet Flange Beads are designed for use on masonry, beams, and column fireproofing.

Combination of expanded flanges and pronounced bead nose ensures successful corner alignment and efficient plaster keying from edge to nose.

This product is produced in the material of galvanized steel (zinc coating is available for special order) with full stiffening ribs to enhance durability.

Materials Options: Galvanized Steel, Aluminium, Stainless Steel, Zinc (99% pure zinc) Alloy

Wing Size: 30mm, 40mm, 50mm, 60mm, 70mm

Length: 1m-2.85m

Company Contact:

• Posted By: Yezhi Plaster Beads Co., Ltd.

• Phone: +86-534-2552316

• Address: 35 Renmin Middle Road, Dezhou, China, dezhou , shandong , China

• Email:

• Website: https://www.cornerbead.org

• Business Description: Visit us for Corner Beads and Trims from China Yezhi Plaster Beads Co.

  Round corner bead, drywall corner bead, metal corner bead, stucco corner beads, bullnose corner beads and expanded plaster beads---All metal bead and casing beads come from www.

  cornerbead.

  org.

  Esta blished in 1955 for the sales and exprot of plaster corner beads, we have concentrated on developing and manufacturing of a wide range of corner beads or draywall plaster in interior and external uses.

  It is our mission to provide products based on reasonable prices and high reliability.

  We always try to meet client needs and closely following market trends.

  We are committed to providing top quality products at competitive prices manufactured with high priority to quality.
