High Durability Automatic Barbed Wire Making Machine - China

Usage

This Barbed Wire Machine can produce positive and negative twisted barbed wire which is widely used in national defense, military, railway, highway, animal husbandry and other industries.

The materials used for positive and negative twisted barbed wire are usually hot dipped galvanized wire, electric galvanized wire etc.

Positive and negative twisted barbed wire use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.

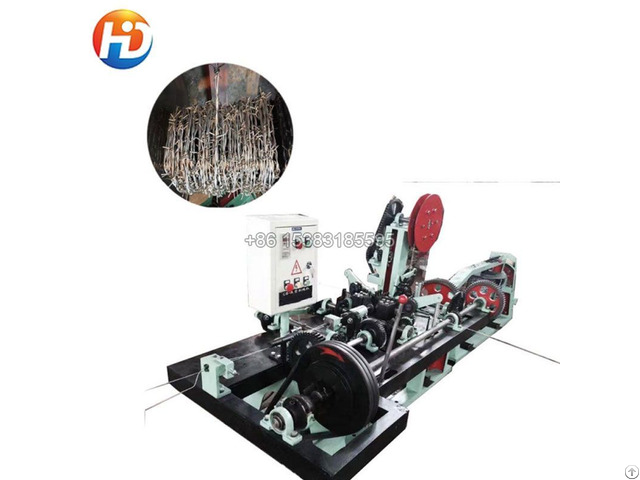

♣ CS-B Single Twist barbed wire machine

Parameter of the machine

raw material: hot plate low-carbon wire, galvanized wire

torn distance: as required

strand diameter: 1.6-2.6mm

wire diameter: 1.6-2.2mm

theoretical yield: 50-60kg/h

high speed barbed wire machine motor: 2.2 kw

main drive shaft speed: 357r/min

Production: 70kg/h

weight: 1200kg

dimension of main part: 1900mm*1300mm*980mm

dimension of take-twist part: 1300mm*800mm*700mm

easy damage part: twist, cutter

9CS Type automatic barbed wire machine

CS Type Barbed Wire Machine Usage

This automatic barbed wire machine can produce positive and negative twisted barbed wire which is widely used in national defense, military, railway, highway, animal husbandry and other industries.

Positive and negative twisted barbed wire use positive and negative way for winding flowers, the barbed wire products produced has no rebound and winding phenomenon, so it is more beautiful compared with the general barbed wire.

CS-A Normal twisted barbed wire machine

Parameter of the wire barbed machine

raw material: hot plated low carbon steel wire, galvanized wire and pvc coated wire

torn distance: 3" 4" 5" or 4" 5" 6"

twist number: 3.5

strand diameter: 1.8-3.0mm

wire diameter: 1.7-2.8mm

theoretical yield: 80-120kg / h

motor: 3 kw

main drive shaft speed: 420r / min

Production: 70kg / h

weight: 1000kg

dimension of main part: 1900mm * 1300mm * 980mm

dimension of take-twisting part: 1800mm * 750mm * 750mm

easy damage parts: twist, cutter

In Carton box dimension: 2040mm * 1600mm * 1450mm

If you want to inquire barbed wire machine price, please visit our website

Company Contact:

• Posted By: Anping Haodi Metal Wire Mesh Products Co., Ltd.

• Phone: 15383185595

• Address: South 150m of North Zhangzhuang, hengshui , hebei , China

• Email:

• Website: https://www.haodimachine.com/

• Business Description: Established in 2007, AnPing HaoDi metal wire factory is a professional manufacturer and exporter that is concerned with the design, Development and production of Wire mesh machines and Wire mesh products.

  We are located in AnPing-the famous hometown of wire mesh in China.

  With convenient transportation access.

  All of our products comply with international quality standars and are greatly appreciated in a variety of different markets throughout the world.

  In 2013, AnPing county HaoDi metal wire mesh products Co., Ltd. company was founded.

  We provide Semi Automatic Chain Link Fence Machine,Fully-Automatic Chain Link Fence Machine, Single Wire Chain Link Fence Machine, Double Wire Chain Link Fence Machine and soon.
