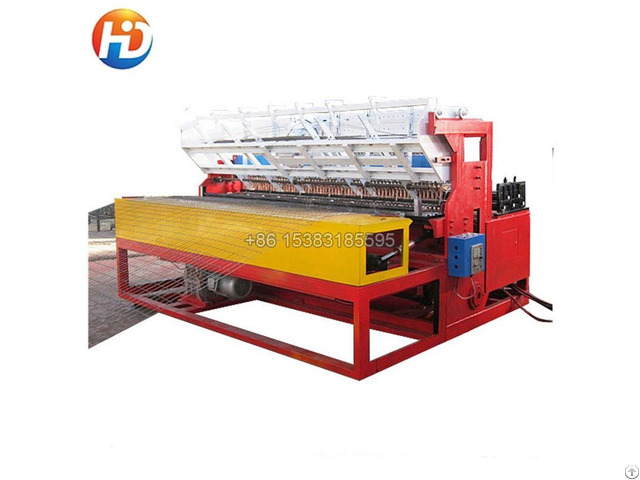

Welded Wire Mesh Fence Machine Hd W 2500 - China

· Brand: HAODI

· Model: HD-W-2500

· Wire diameter: 3-6mm

· Longitude wire space: 50 x 50 - 300 x 300mm

· Cross wire space: min.

25mm / 12.7mm

· Mesh width: max.

2.5m

· Mesh length: max.

6m or in roll

· welded wire mesh roll machine Welding speed: 50-100 times / min

· Welding transformer: 125kva * 6pcs

· Longitude wire feeding: pre-cut

· Cross wire feeding: pre-cut & hopper

· welding mesh wire machine Welding electrodes: 48pcs

· Machine weight: 4.2T

· Rated Voltage: 380V 50HZ

· Overall dimension: 6000 x 3200 x 1800mm

· Packing: Plastic film wrapped.

And wooden.

We are mesh wire machine manufacturer

Main details introduction:

1 - Numerical control (touch screen)

2 - Variety of specifications can be customized according to the requirements, including the wire diameter, wire width, hole size.

3 - Easy to operate, only one person can operate, lower labor costs fence wire mesh machine Function

1 - Feeding material:

The warp wire and weft wire are straightened and cutted from coil wire material, realized by auto straightening and cutting machine.

The warp wire are placed on a corresponding wire penetrating mold by worker, and the weft wire will be automatic falling down one by one, from the weft wire system

2 - Welding mesh panel system:

The main machine starts welding and adopts a synchronous control technology, both branch control welding time and welding time are controlled by a Mitsubishi PLC digital programming system, and the mesh opening size can be adjusted only by direct input on a touch screen; and it could be exist different weft distance on one piece of one mesh sheet

3 - Drawing mesh panel system:

Step motor controls the whole automatic mesh panel drawing process until one mesh panel finished, and the automatic mesh connecting and discharging system is started; the welding of the next mesh is started.

Company Contact:

• Posted By: Anping Haodi Metal Wire Mesh Products Co., Ltd.

• Phone: 15383185595

• Address: South 150m of North Zhangzhuang, hengshui , hebei , China

• Email:

• Website: https://www.haodimachine.com/

• Business Description: Established in 2007, AnPing HaoDi metal wire factory is a professional manufacturer and exporter that is concerned with the design, Development and production of Wire mesh machines and Wire mesh products.

  We are located in AnPing-the famous hometown of wire mesh in China.

  With convenient transportation access.

  All of our products comply with international quality standars and are greatly appreciated in a variety of different markets throughout the world.

  In 2013, AnPing county HaoDi metal wire mesh products Co., Ltd. company was founded.

  We provide Semi Automatic Chain Link Fence Machine,Fully-Automatic Chain Link Fence Machine, Single Wire Chain Link Fence Machine, Double Wire Chain Link Fence Machine and soon.
