Cnc Plasma Machine - China

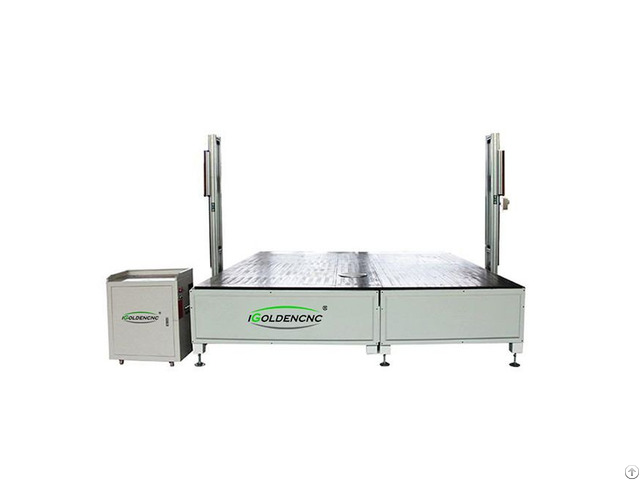

CNC EPS foam machine with 3 axis for foam board cutting and foam relief carving, 4 axis swing head for 3D foam mold making, 4th axis for rotary milling and cutting styrofoam, EPS and XPS foams, now the 3 axis CNC foam router machine for sale at cost price.

CNC EPS foam Features of CNC EPS Foam Cutter:

Improving working efficiency: Like ATC CNC Machine, this type of machine was designed with linear tool change magazine.

Various of tools can be changed automatically in the engraving process, which means time saving.

Multi-function: With a true four-axis (4 Axis CNC Machine), and the machine’s spindle can swing 180 degree to do three-dimensional processing.

Realizing customized services : The Z axis can be heighten, and the whole working size also can be customized.

CNC EPS foam Applicable Industry 1 - Mold industries: sculpture various large non-metallic mold can be particularly suitable for any kind of Foam (EPS) mold, wooden ship model, wooden model aviation and other wooden mold.

2 - Foam industry: Can carve and cut on any kind of Foam (EPS), do 2D and 3D dimension processing.

3 - Three dimension: with 4 axis, Big diameter Rotary, can do any kind of 3D cylinder material and mold processing for advertisement industry, cloth and shoes industry It can manufacture the following effects: engraving, cutting, milling, drilling, relief, shadow, encasement and so on.

CNC EPS foam Dragon Gate IGOLDENCNC foam cutting machine is the first gantry in the industry to use aluminum profile material, which is light in weight and not easy to deform.

It is different from the common equipment on the market that uses square tube welding: it is top-heavy and it shakes during operation, which affects the processing accuracy.

CNC EPS foam Table IGOLDENCNC foam cutting machine table adopts 20mm thick high-density polyester board, which is not deformed and resistant to high temperature.

And the use of machining center precision milling to ensure the flatness of the table.

The table is equipped with positioning lines to facilitate the alignment of the feeding.

Most of the manufacturers in the market use wooden board, glass, thin aluminum sheet or even no table.

It cannot be avoided that the cutting error caused by the deformation of the table top is large.

Affect the use effect.

CNC EPS foam Transmission IGOLDENCNC equipment adopts high-precision square linear guide, with high-precision helical rack, high-precision ball screw.

Adopt double guide rails plus one screw transmission mode, high precision, long service life, large contact surface, strong load carrying capacity, the use of vertical rail technology can better ensure the stability of operation.

Most of the common equipment in the market use round rails or square rails of ordinary small brands, and the contact area is small.

The device is not running smoothly.

CNC EPS foam Beam fixing method The beam of IGOLDENCNC foam cutting machine adopts hanging plate fixing method, which makes the equipment run more stable and have higher precision.

It is different from the common equipment beams on the market that squat directly on the bed, and it takes a long time to shake due to the heavy gantry welded by the square tube.

Affect the processing accuracy.

CNC EPS foam Drag chain IGOLDENCNC numerical control cable national standard grade flexible cable, high quality and long service life.

And fixed by towline, anti-interference, anti-winding.

Different from the inferior towline of common foam cutting machine on the market, the durability is higher.

CNC EPS foam CNC EPS foam Advantage of CNC EPS foam: This CNC EPS foam uses a Japanese THK guide rail, it is maintenance-free and self-lubricating for life.

This CNC Styrofoam Cutter Adopts Italian HSD high-speed electric spindle with high-altitude rotation speed reaches 12000RPM, which ensures the optimization of machining efficiency.

The whole lost foam casting workbench of this CNT Thermocol Cutting Machine has undergone strict annealing and other heat treatment processes to ensure the structural stability and rigidity of the bed.

This CNC Polystyrene Cutting Machine uses the new-generation system from Taiwan which is safe and reliable in operation, efficient in reading code, and it has an online simulation function and online monitoring function to ensure efficient and safe processing.
