Granite Router For Sale - China

Steps For Proper Operation Of CNC Engraving Stone granite router for sale

granite router for sale description:

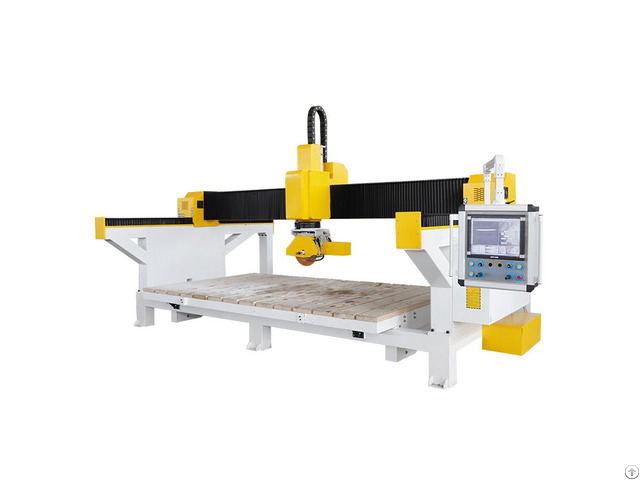

The Marble CNC Engraving Machine adopts imported square linear guide, double row and four rows of sliders, strong bearing capacity, fast speed, stable operation, high precision, and long service life.

The special spindle of 5.5KW stone engraving machine has a large cutting force and high efficiency.

Software compatibility, compatible with a variety of CAD / CAM design software such as Type3 / Artcam / Castmate / UCANCAM.

Fully equipped with engraving tools, with embossed engraving function, two-way tool cooling system.

CNC digital control with breakpoint memory to ensure continued operation in case of an accident (broken knife) or the next day.

Features of granite router for sale :

1).

This CNC engraving stone for Quartz, Granite and Marble is equipped with strong machine structure welded by thick square tubes, excellent stability with no deformation.

High precision rack and pinion for X/Y axis and ball screw for Z axis, high precision and long lifetime;

2).

High-speed water cooling spindle and high-performance subdivision driver ensure to work stably for a long time;

3).

UncGraphics.

NX3.0, Mastercam9.0 other software, set the CAD / CAM as a whole, through digital analysis, design, the product was processed to support procedural pre/igs/scep/dxf/dwp and other documents;

4).

Vertical-type ATC system makes the whole process from the hole, cutting, shaping and polishing to a variety of milling processes go, the full realization of a high degree of automation;

6).

Break-point memory and power off continuous engraving functions;

7).

Different kind of processing works can be done, such as polishing for backsplash, former anomalous edge, cutting and polishing water tap hole through the automatic tools changing.

Steps for proper operation of CNC engraving stone:

As a cnc stone router supplier igoldencnc cnc equipment company will send the operation manual, necessary accessories, and installation instructions together with cnc stone engraving machine to clients factory.

In this article, it illustrates a few points for the proper operation of cnc marble or granite router.

1 - Please make sure the cnc router for stone machine and computer all connected well before starting the stone engraving machine, and then open the power supply of cnc stone carving machine and computer.

If there is nothing wrong about industrial cnc stone router, then it's ready to go.

2 - The second step is set the program by the stone router DSP control system or NC studio.

After turning on the stone cnc machine control system, select the "back to machine origin" menu.

Granite router for sale will automatically return to the origin and correct the coordinate system.

In some cases, the marble stone router user does not need to perform mechanical reset operations, when restart the marble cnc machine for sale after a normal shutdown and still want to continue the previous operation.

NC studio control system will save the current coordinate information when stop the working of granite cnc carving machine.

3 - Before the whole cnc router for marble engraving processing, cnc stone table router users generally need to load processing procedures, otherwise, some functions related to the automatic processing will be invalid.

Select"open (F)|open (O).

"The menu will pop up the windows standard file operation dialog box, where you can select the drive, path, and file name you want to open.

Once the "open" button is clicked, the processing program of cnc granite router machine has been loaded with program.

4 - Determine the origin of cnc stone carving machine.

Make X axis, Y axis go at original position of the workpiece, set the current point as cnc machine for stone origin, or clear the current position in the coordinate window, in this way, the cnc stone machine for sale will regard current position as starting point to process.
