New Sheet Metal Cutting Machine - China

Run your factory in full efficiency with our full cover fiber laser cutter.

The auto-loader and auto parallel pallets system keeps your production flowing without machine stop.

It is best for mass cutting of plates and tubes, which saves huge labor costs and improves efficiency by 50%.

Thanks to powerful and durable laser and protective view windows, you benefit from high-quality cuts over the entire sheet thickness range and a safe and clean cutting environment for each workday.

fiber laser cutter fiber laser cutter Buying guide for fiber laser cutter:

1 - Classification of laser metal cutting machine: laser sheet metal cutting machine on the market today can be divided into flat laser cutting machines, laser tube cutting machines, three-dimensional laser cutting machines, etc.

When you choose a laser cutting machine, you can first understand the different types of laser cutting machines, and then according to your own The actual situation to buy.

2 - Select by cutting function： Different laser sheet metal cutting machine have different cutting functions.

Customers can first understand the functions of laser cutting machines before purchasing laser cutting machines.

This is very helpful for the correct purchase of laser cutting equipment.

For example, if the metal material that the company needs to process is curved, it will be more advantageous to choose a three-dimensional laser cutting machine.

If the metal material to be processed is a flat material, the cutting effect of choosing a flat laser cutting machine will be better.

The material is pipe type, so the laser pipe cutting machine is your best choice.

3 - Services of laser cutting machine manufacturers： The laser sheet metal cutting machine itself is a relatively complex machine.

In order to enable the laser cutting machine to work and use normally, a complete after-sales service is essential.

BuyCNC has a complete and standard after-sales service process, which can guarantee the stable operation of the laser cutting machine.

If there is damage, we can also respond quickly and arrange professional technical service engineers to solve the problem as soon as possible.

Machine Parameters Model iGR-P 3015

Working area 3000*1500mm

X axis stroke 1500mm

Y axis stroke 3000mm

Z axis stroke 300mm

Accuracy X, Y axis positioning accuracy 0.03mm

X, Y axis repositioning accuracy 0.02mm

Speed X, Y axis max.

running speed 180m/min

X, Y axis max.

accelerated speed 2G

Power supply Phase 3

Nominal voltage 380V

Frequency 50/60Hz

Protection grade IP65

Machine body Max.

working loading 1000kg

Body weight 4000kg

Size(L*W*H) 8230*3140*2300mm

Laser power 500w/ 750w/ 1000w/ 1500w/ 2000w/ 3000w/ 4000w/ 5000w/ 6000w/ 8000w/ 10000w/ 12000w

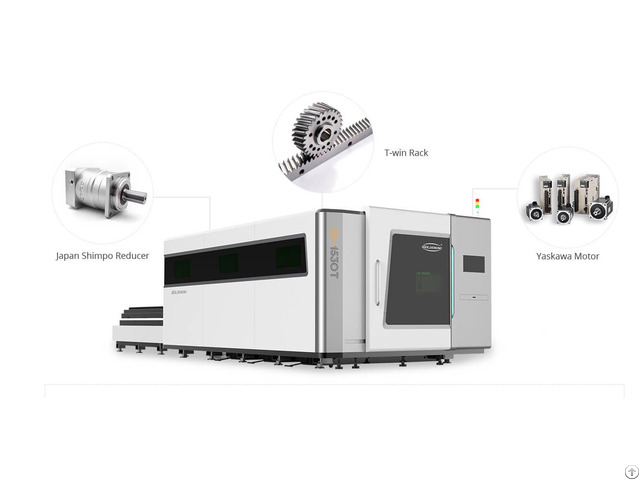

Worktable optional 4000*1500mm/ 4000*2000mm/ 6000*2000mm/ 6000*2500mm HIGH-PRECISION TRANSMISSION SYSTEM Taiwan T-win double drive rack guide, Japan Panasonic drive motor, Japan Shimpo reducer

The positioning accuracy of the machine tool is 0.03mm, and the repeated positioning accuracy is 0.02mm.

High precision transmission system AEROSPACE ALUMINUM EXTRUSION BEAM AEROSPACE ALUMINUM EXTRUSION BEAM Fiber laser cutter application: Automobile manufacturing, machinery and equipment, electrical equipment, hotel kitchen equipment, elevator equipment, advertising logo, car decoration, sheet metal production, lighting hardware, display equipment, precision parts, hardware products, subway accessories, decoration, textile machinery, food machinery, Construction machinery, ships, tooling, metallurgical equipment, aviation, aerospace and other manufacturing and processing industries; Fiber laser cutter is suitable for variety of metal plates, pipes ( with special device ), stainless steel, carbon steel, galvanized sheet, pickling board, brass plate, aluminum plate, manganese steel, all kinds of alloy plates, rare metals etc.
