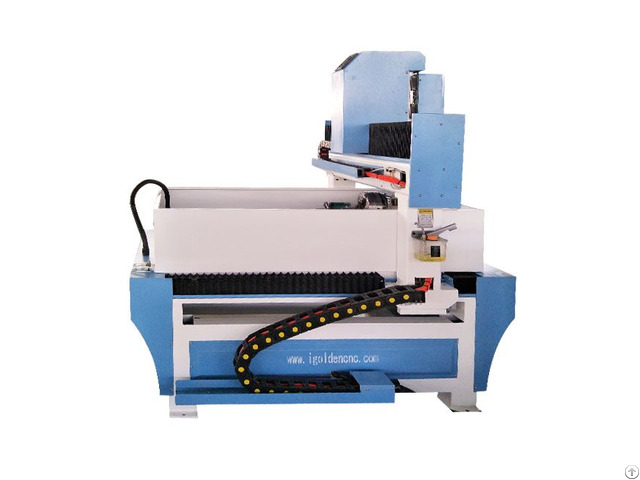

Small High Speed Cnc Milling Machine - China

This is a Small CNC Milling Machine.

Different from other small desktop CNC machines, this small high speed cnc milling machine is good at Aluminum machining.

Because it is equipped with an advanced oil mist cooling system, it can efficiently treat aluminum, brass, etc.

Soft metal processing.

This small high speed cnc milling machine for aluminum machine not only has a very comprehensive cutting ability, it also has a very small footprint, It is a 24×36 inch cnc router for aluminum wood.

If you are interested then please contact us.

Small CNC Milling Machine The application of this Small CNC Milling Machine:

♥ Advertising indusries: Logo design, advertisng board, DIY, plastic, acrylic cutting.

♥ Decoration industries: wave boards, sign making, decorations.

♥ Arts & Crafts industries: Engrave on artificial woods, bamboos, organic boards, double-color boards and so on for achieveing effects of exquisite patterns and characters.

♥ Processing material: engraving, milling and cutting processing for acrylic, PVC, density boards, organic glass, plastics and soft metal sheets such as copper and aluminum.

Features of Small CNC Milling Machine: 1 - Heavy duty cast Iron as a whole with vibration temper aging treatment ensures no deformation for long time 2 - Cast iron Working table with platform moving type.

Durable without deformation enable positioning more preciously 3 - Equipped with Hiwin Taiwan linear square guide rail diameter 20mm for XYZ-axis, effectively improved the precision.

4 - Three axis with precision diameter 20mm lead ball screw transmission ensure the engraving speed and accuracy.

5 - High variable speed China Qiancheng 2.2KW water cooling spindle, big torque, longer life, strong cutting ability and continuous work for long time.

6 - Stainless steel water slot cooling system(optional iron water slot), ensuring the cooling for the metal & hard materials, improving the processing precision.

7 - Leadshine hybrid servo motor and driver H2-758 for XYZA-axis, compared with the stepper motor, ensuring high speed and precision working.

8 - Rationalized placement of the electronic parts.

Optimized heat dissipation effect.

Adopt high quality electronic parts, minimizing fault rate.

9 - Optional PCI NcStudio/DSP offline/Mach3 controller 10 - Adorption rigidity coupling, much improving machine precision 11 - With Organ type dust proof for Y-axis.

Detailed Images 12 - Auto tool calibration, more convenient for operation.

13 - Auto lubrication system, more convenient for machine lubricating.

14 - With the function of break-point memory, power failure resuming and automatic home/orgin correction function.

Effectively ensure long time working precision.

15 - Working Pause, Speed adjust, Working depth adjust at any time while working.

Preview the 2D&3D working result With simulation function.

Variable Speed is suitable for various materials and industry.

16 - Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Ca xa.

With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.

Small CNC Milling Machine Parameter Configuration X, Y, Z working area: 600 x 900 x 120mm Table size: 600 x 900mm Z axis working area: 120mm Working speed: 15000mm/min Max power consumption 2000w X, Y, Z traveling orientation accuracy: ±0.03/300mm X, Y, Z reorientation accuracy: ±0.02mm Max feeding height: 120mm.

Operation code: G code*.

u00*.

mmg*.

plt Software: NC studio.

Spindle power: 1.5KW Spindle speed: 0-18, 000rpm Power(not include the spindle): 800W Working motors: stepper Working voltage: AC220V/50/60Hz Control system: Card control Memory: 128M Lead rail: Square rail transmission: Ball screw
