1kg Powder Packing Machine - China

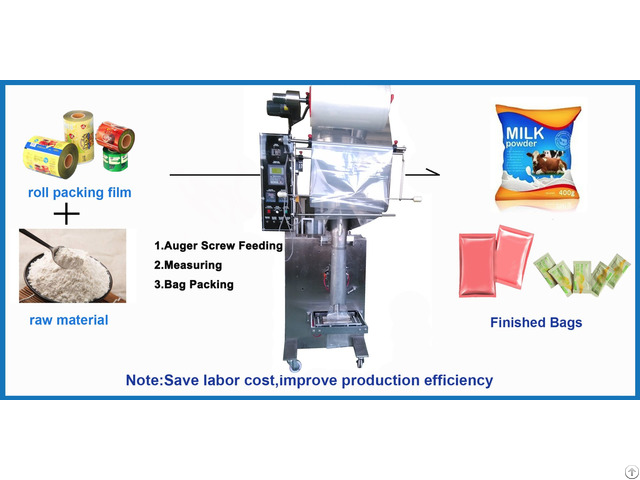

I: Main Feature

1 - Micro computer controlling, sever motor control measure, stepping motor control membrane, adopt frequency changer, Chinese and English display control system, equipped with reliable photo electricity detecting system.

2 - Measuring system adopt adjustable screw feeder, which is used to adjust material content during operation of the machine.

3 - All the work of bag making, measuring, filling, sealing, cutting, counting, heat-printing codes can be done automatically.

4 - Spare parts contacting objects and the surface of the machine adopt stainless steel 304, which are easily washable.

5 - Applications: widely suitable for food, medicine, chemical industry, such as food additive, milk powder, bean powder, coffee powder, tea powder, instant powder, flour powder, medical powder, and cosmetic powder etc.

II.

Packing Materials

Paper/PE, PT/PE, PET/plated AL/PE, PET/PE, BOPP film, and other materials can be heat sealed composited film.



III.

Sealing Type

Pillow sealing

IV.

Technical parameters:

Type CB-400P

Bag length 80-300mm

Bag width 50-200mm different bag width need change different bag former

Max width of roll film 420mm

Packing speed 5-60bags/min

Measuring range 1-1500ml

If the packing range big, need change volume cup.

Power voltage 220V

Power 2.2KW

Dimension(L*W*H) 1100*950*2160mm

Machine weight 450KGS
