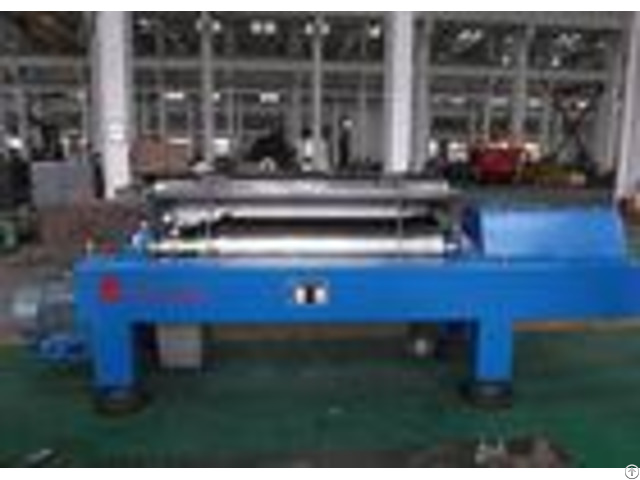

Blue Horizontal Decanter Centrifuge Speed 3600 R Min Starch Washing And Dehydrating - China

Starch Washing and Dehydrating Horizontal Decanter Discharge Centrifuges Speed 3600r/min Product Specifications: - - - - Model | Drum diameter mm | Draw Ratio L/D | Speed of drum r/min | Factor of separation G | Spiral difference rotate speed r/min | Inlet capacity(m3/h) | Main/assist motor (KW) | LW250 | 250 | 3.73 | 4200 | 2467 | 2~31 | 1-7 | 11/4 | LW350 | 350 | 4.4 | 3600 | 2540 | 5~25 | 5~18 | 22/5.5 | LW450 | 450 | 4.4 | 3200 | 2580 | 5~25 | 5~25 | 30/11 | - - - - Product description: Decanter centrifuge is a mechanical equipment which utilize the principle of centrifugal and sedimentation and can carry out continual separate the suspend liquid with density difference.

The centrifuges which made by out factory can clarify, dehydrate and classify the suspensions with 0.002-3 mm solid-phase particles and thickness range at 0.5~40%.

The product can be classify into two type LW-counter-current and parallel-current base on its structure feature.

According to feed feature, product can be divide into LW two-phase separator, LWS three-phase separator.

It is suitable for separating different feed under different process condition, and widely use in pharmaceutical, food, chemical, light industry, environmental protection industry etc.

Application: Decanter centrifuge is most often used for clarification of liquid containing high concentrations of solid, removing solids from liquid.

It is usually used in waste water and PVC sludge industry.

And also can be used in sunflower oil, palm oil and tea industry.

Product competitive advantage: 1, Helical pusher adopts the special antifriction method: sprinkle hardness alloy or inlay hardness alloy anti-friction disk; anti corrosion stainless steel is employed for the material of the main parts of drum, so that assure the durability and longer using lifetime of the equipment.

2, According to the operating conditions characteristics of material, optimize the drum length-diameter raido, drum and structure of drum taper parts.

3, According to the material thickness, flow change, the rotate speed difference and tolerance can be adjusted.

4, The decanter occupied little area, easy to be assembly and commissioning; the whole machine is operated hermetically, and has a good production environment.

5, Adopt double frequency conversion control for main motor and differentia auxiliary motor, so make stepless speed regulation come true as well as enlarge the scope of application.
