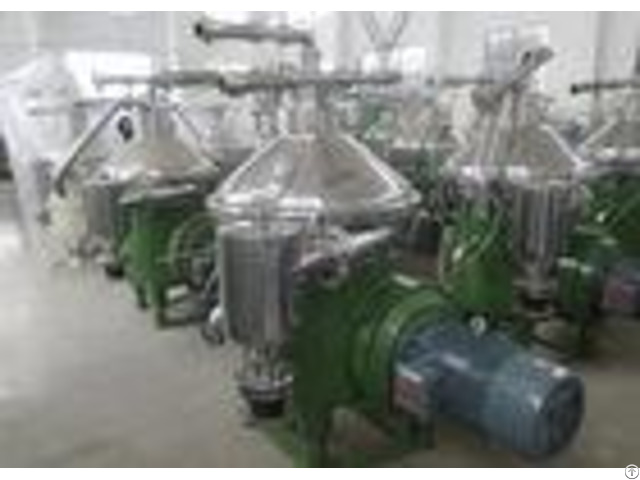

Plc Control Disk Bowl Centrifuge Centrifugal Oil Separator For Fish Meal - China

Disk Bowl Centrifuge Oil Separator, Automatic Separator Machine For Fish Meal Product Description Compared with general vegetable oil, animal oil has has its irreplaceable unique flavor that can boost people's appetute.

Animal oil contains certain nutrition and provides very high energy.

During the dep processing in the breeding industry, the use of separators can help oil recovery in the processing of subsidiary materials, which not only enhances profits, but also reduces pollution emission.

Three separation disc type separator centrifuge for animal oil factory is mainly used in refining meat oil from animals such as fishmeal facotry, animal oil factory, the capacity from 10t/d~600t/d.

It has advantages of high speed, smooth operating, compact structure, small footprint, all sealed of the inlet and discharge, low noise, good separation.

The materials of centrifuge which contact with the parts are stainless steel which meets the requirements of food grade.

Product Principle The separated material will be input into the heart of the separator, i.e. the drum.

By the strong centrifugal force field, thefeed passes the separation partition consists of disk string, by taking the neutral holes in disk as the separating surface, the liquid in higher specific gravity (heavy phase) will move outward the neutral holes along disk wall, and the heavy residue will accumulate at the residue-settling area, and the residue will flow toward the big centripetal pump.

The liquid in lower specific gravity (light phase) will move inward and upward along disk wall, then assemble at the small centripetal pump.

The heavy and light phase will be output separately by small and big centripetal pump.

Product model list - - - - Model | Flowrate | Inlet pressure | Outlet pressure | Power | Weight | DHYY360 | 1200-2500 LPH | 0.05 MPA | 0.1-0.25 MPA | 7.5 KW | 1280 KG | DHYY470 | 2500-7000 LPH | 0.05 MPA | 0.1-0.25 MPA | 15 KW | 1880 KG | DHYY550 | 5000-15000 LPH | 0.05 MPA | 0.1-0.25 MPA | 18.5 KW | 2200 KG | DHYY700 | 15000-30000 LPH | 0.1 MPA | 0.2 MPA | 30 KW | 3300KG | - - - - ProductAdvantage This special design separator has the full automatic control box which used for safety protection and equips and also been equipped with advanced automatic vibration tester which can view vibrating value at any time.

We can make separating and discharging to the best affection from regulating separation parameter directly at the screen.

1 - Continuous feeding 2 - High separation factor 3 - Automatic residue discharging 4 - Concise bowl design without frequent washing 5 - Hydraulic coupling driving with longer service 6 - PLC system automatic control Application 1 - Purifiation of animal fat 2 - Purification of fish oil 3 - Kitchen waste oil 4 - Separation offish pressed liquid 5 - Waste oil 6 - Hogwash oil Our team Our service 1 - Professional Engineer wil recommend you the most suitable model according to your requirement.

2 - Supply reference process flow chart .

3 - Supply on-site installation and operation test 4 - Integration for control system and process 5 - Customized size and structure 6 - 12Months guarantee period from machine arriving date.

7 - Sufficient spare parts in stock are available .

8 - Technicians are availabled for overseas service.

9 - 24 hours technical consultation .

10 - The customer could get trained by our experienced tecnician.

11 - Routine tracing will be done timely.

12 - Guide you do the normal maintenance.

13 - Suggestions and any comments &reflection from customer would be treated in priority.

14 - Markting team will visiting if you need.

FAQ 1) Q: How can we visit your factory? A: If you come from abroad, air to shanghai airport, then we can pick you up at airport.

If you come from domestic city, air or train directly to Wuxi station.

We will pick you up at railway station.

2) Q: What payment methods your company accept? A: We accept most of the payment methods, but mainly accept T/T, L/C at sight .

3) Q: How long is the warranty time for your products? A: Our officially promised warranty time is 12 months after commissioning .

4) Q: What's the shipment terms and delivery time of your company? A: Well, the delivery time depend on the quantity of your order.

Usually is 20 days .

For some customized machine 30 days is necessary.

5) Q: Do you give any Discount? A: I will surely try my best to help you get those by the best price and good service at the same time
