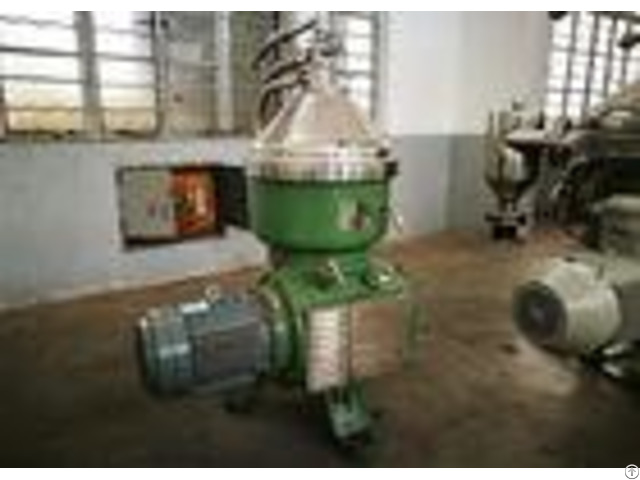

Solid Wall Design Disc Oil Centrifugal Separator Pressure 0 05 Mpa For Animal Oil - China

Solid-wall Design Pressure 0.05 Mpa Disc Oil centrifugal Separators for Animal Oil Product description: Enough oil should be ensured in humans dietary, and vegetable oil and animal oil meet with their different nutrients to meet the human body needs.

So the oil quality affects the human health directly.

Juneng Separator can suitable for a variety of oils and fats and provide personalized solutions in order to achieve optimal oil and maximized production capacity The solid wall separator is designed to retain solids within the disc stack centrifuge and it is so called solids retaining separator.

The solid wall bowl separator is often used in processes that require liquid/liquid or liquid/solids separation when the solids content in the feed is no more than about 1% by volume.

Because of the simplicity of the design, very high g force can be obtained and this separator is thus very efficient in the recovery of fine particles Application: The solid wall separator are widely used for: separate two liquids from each other, with low solids contents separate one liquid form solids, clarifing liquid or recovering solids Vegetable oil: Colza oil, cottonseed oil, Corn oil, palm oil, soybean oil, Peanut oil, Rice oil, Sesame oil, Safflower oil and son on.

Animal oil: Fish oil and other various animal fat clarification.

Product competitive advantage: As with disk separators with self-cleaning bowl, the disc separator with solids wall bowl is not able to periodically discharge the separated solids at full speed.

Because there is no hydraulic system.

So, All solids separated out by a solids wall bowl shall be removed manually.

Due to this separator without control box, so this type separator is very cheaper compare with automatic control separator.

Product Specifications: - - - - Model | Treatment capacity (L/H) | Inlet Pressure (Mpa) | Outlet pressure (Mpa) | Motor power (Kw) | Weight (Kg) | Outline dimension (mm) | DHZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 7.5 | 1280 | 1500*1150*1500 | DHZ470 | 2500-7000 | 0.05 | 0.1-0.25 | 15 | 1880 | 1800*1200*1800 | DHZ550A | 5000-10000 | 0.05 | 0.1-0.25 | 18.5 | 2200 | 1850*1550*2050 | DHZ550E | 6000-15000 | 0.05 | 0.1-0.25 | 22 | 2200 | 1850*1550*2050 | DHZ700 | 15000-30000 | 0.1 | 0.2 | 30 | 3300 | 2100*1650*2300 | DRZ360 | 1200-2500 | 0.05 | 0.1-0.25 | 5.5 | 750 | 1250*1050*1500 | DRZ400A | 2000-6000 | 0.05 | 0.1-0.3 | 7.5 | 1150 | 1300*900*1450 | DRZ400E | 4000-7500 | 0.05 | 0.1-0.3 | 7.5 | 1300 | 1300*900*1500 | DRZ550 | 6000-18000 | 0.05 | 0.1-0.3 | 22 | 2200 | 1620*1300*2200 | - - - -
