Agricultural Machinery Quick Disconnect Hydraulic Couplers Lsq Tg Iso A - China

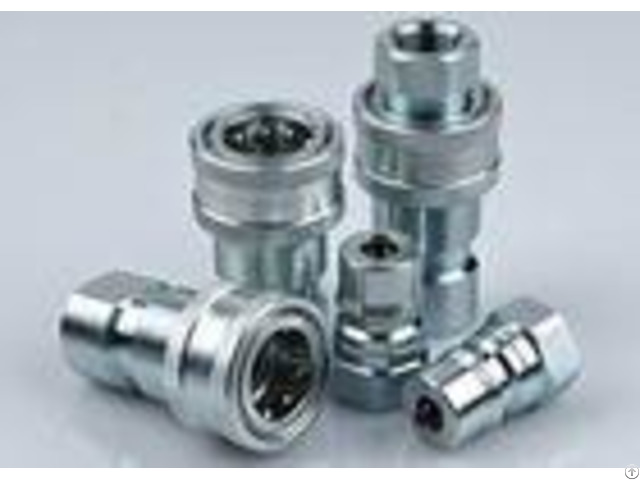

LSQ-S2, ISO7241-B Hydraulic Couplings in Carbon Steel, Chrome Three Descripton: LSQ-S2 Close Type Hydraulic Quick Coupling(Steel) Applications: LSQ-S2 couplings, are used across the spectrum of hydraulic applications.

These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.

LSQ-S2 are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.

Specifications - - - - Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | Rated Pressure(PSI) | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 | Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 | Temperature Range | -20 to +120 | Seal material | NBR | - - - - LSQ-S2 Series couplings feature: 1 - Poppet valves available to prevent uncoupled leakage.

2 - Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.

3 - Critical parts are hardened for durability.

4 - Dependable ball-locking mechanism holds the mating halves together.

5 - Socket and plug are precision machined from solid bar stock.

6 - LSQ-S2 series conforms to the standard of ISO 7241-B.

7 - Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.

Performance: Test Fluid: Oil-200SUS.

1GPM=3.7 8L/Min, 1PSID=0.0069MPa LSQ-S2 Series(1/4", 3/8", 1/2", 3/4", 1") Socket - - - - ISO | PARTNO.

| LS | D | HEX1 | A | T | 5 | LSQ-S2-01SF | 48 | 24 | 17 | 9.5 | G1/8 NPT1/8 | 6.3 | LSQ-S2-02SF | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 | 10 | LSQ-S2-03SF | 65 | 35 | 24 | 13 | G3/8 NPT3/8 | 12.5 | LSQ-S2-04SF | 74 | 44.5 | 28.5 | 20.5 | G1/2 NPT1/2 | 20 | LSQ-S2-06SF | 92 | 54 | 36 | 22 | G3/4 NPT3/4 | 25 | LSQ-S2-08SF | 103 | 63.5 | 41 | 23 | G1 NPT1 | - - - - Plug - - - - ISO | PARTNO.

| LP | d | C | HEX2 | A | T | 5 | LSQ-S2-01PF | 29 | 10.8 | 19 | 14 | 9.5 | G1/8 NPT1/8 | 6.3 | LSQ-S2-02PF | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 | 10 | LSQ-S2-03PF | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 | 12.5 | LSQ-S2-04PF | 46.5 | 23.5 | 28 | 28.5 | 20.5 | G1/2 NPT1/2 | 20 | LSQ-S2-06PF | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 | 25 | LSQ-S2-08PF | 63 | 37.8 | 45 | 41 | 23 | G1" NPT1" | - - - - Coupled - - - - ISO | PARTNO.

| L | D | HEX1 | HEX2 | T | 5 | LSQ-S2-01 | 58.5 | 24 | 17 | 14 | G1/8 NPT1/8 | 6.3 | LSQ-S2-02 | 72 | 28.5 | 19 | 19 | G1/4 NPT1/4 | 10 | LSQ-S2-03 | 80.5 | 35 | 24 | 24 | G3/8 NPT3/8 | 12.5 | LSQ-S2-04 | 93.5 | 44.5 | 28.5 | 28.5 | G1/2 NPT1/2 | 20 | LSQ-S2-06 | 112.5 | 54 | 36 | 36 | G3/4 NPT3/4 | 25 | LSQ-S2-08 | 126.5 | 63.5 | 41 | 41 | G1 NPT1 | - - - -
