Automatic Carton Stitching Machine - China

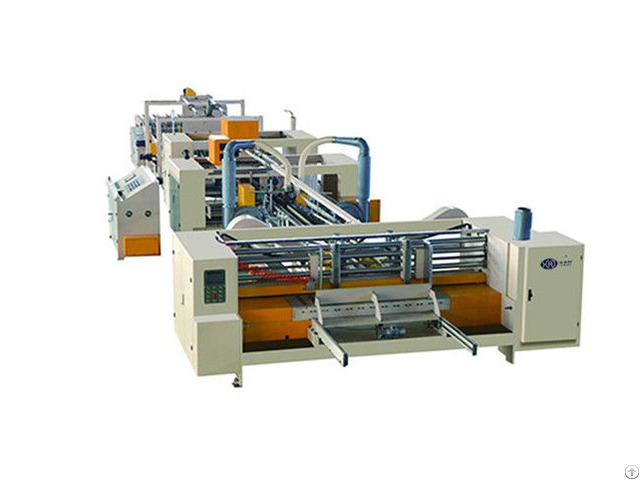

Automatic carton stitching machine

Carton stitching machine

Automatic carton stitching machine Maximum(A+B)*2 3000mm The minimum length A 250mm

Minimum(A+B)*2 900mm The maximum height D 1150mm

Maximum(C+D+C) 1200mm The minimum height D 250mm

Minimum(C+D+C) 350mm Nail tongue width E 35-40mm

The minimum roll cove C 25mm Mechanical length 19000mm

The biggest shake cove C 560mm Machine width 4450mm

The maximum width B 1320mm Machine weight(T) 25

the minimum width B 200mm Speed(nail/min) 800

The biggest length 1320mm order 1-99

Nail distance 30-80 Nailing speed 120m/min

Sticky box speed 200m/min Power(KW) 60

The function and characteristic

1 - The machine full computer control automatic tuning single, easy to operate, simple; can store 1000 nail single.

2 - Screw mixer bottomless with cover box can also be (when ordering).

3.3-5 minutes to adjust size, simple and quick.

4 - Nail head power for the servo motor, mechanical speed: 800 nail/minute.

5 - Pieces paper department adopts the vacuum adsorption front belt paper make sure the carton is not skewed; The machine front feeder belts, belt height can be adjusted separately, increase service life.

6 - Pieces into the paper with side lapping device can send paper neatly smooth.

7 - Mixer feeding, feeding speed by PLC automatic control, guarantee won’t appear the cartons nail not to come out or bad phenomenon.

8 - Mixer feeding machine adopt servo motor control, to ensure that the nail from the stable and accurate.

9 - This machine design have box plastic function, ensure no scissors in nailing, neatly not skew; Before and after the machine to ensure the scissors mouth can’t more than plus or minus 2mm.

10 - In pieces the machine can be nailed three layer, five layer carton(statement in advance with order) is required for a seven layers.

11 - An automatic counting stacking quantitative output in pieces the machine finally.

12 - Pieces of native baling part for matching.

With the expansion of business scope, Shandong RiNo International Trade Co., Ltd quickly moves forward to the world and becomes an export-oriented company that integrates production and trade, includes paper packaging products, corrugated packaging machinery equipment, packaging product manufacturing equipment & consumables such as Corrugated Cardboard Machine, Printing Machine, Folder Gluer Machine, Automatic Die-cutting machine, Iron Wire and many other products, providing a full range of services from product to technical support.
