Ring Micro-grinding custom Industrial Beneficiation Equipment industrial powder making equipment manufacturer

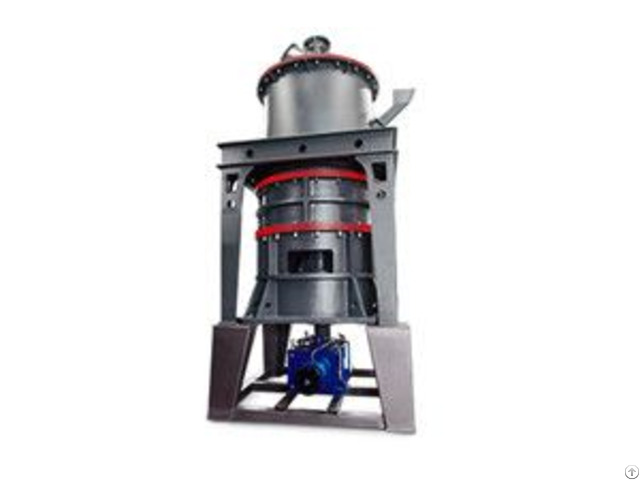

HGM Series Stone Powder processing equipment is the equipment specializing in producing fine and superfine powder of non-inflammable, non-explosive and brittle materials with Moh's hardness under six, such as calcite, chalk, limestone, dolomite, kaolin, bentonite, talc, mica, magnesite, illite, pyrophyllite and vermiculite, sepiolite, attapulgite, rectorite, diatomite, barite, gypsum, alunite, graphite, fluorite, rockphosphate, Kalium ore, pumice, etc., totally more than 100 kinds of materials.

Quick Details of custom Stone Powder processing equipment:

Condition: New

Type: Grinding mill machine

Capacity(t/h): 0.4-12, 0.5-4.5/0.6-6.5/0.7-7/1-8 .

5/1.5-12

Place of Origin: Shanghai China (Mainland)

Brand Name: Dingbo

Model Number: HGM

Motor Power(mm): 145-165

Ring Diameter(layer): 800/930/1035/1300

Ring Number(layer): 3/3-4/3/4

Rollor Number(piece): 21/24-32/34-36/40-44

Main Shaft Speed (r.p.m): 230-240/200-220/180-200/1 35-155

Input Size(mm): Equal or Less than 20

Inished Size(um/mesh): 5-47(325-2500)

Main Components of Stone Powder processing equipment :

HGM series Stone Powder processing equipment mainly consist of main unit, classifier, dust cleaner, powder collector, blower, muffler, hammer crusher (can be replaced by jaw crusher), bucket elevator, sound-proof room, storage hopper, vibrating feeder and so On.

Applications:

There are five types of Shanghai Dingbo Stone Powder processing equipment, they are HGM80, HGM90, HGM100, HGM100A and HGM125 - The finished production fineness can be reached 300meshes~3000meshes, 5-47 micron.

The capacity (ton/hour) ranges from 0.4 T/H to 12T/H.

Features of Stone Powder processing equipment:

High Efficiency

Under the same finished final size and the same motor power, the capacity of Stone Powder processing equipment is twice as much as jet mill, mixing grinder and ball mill, and energy consumption decreased 30%.

Long lifecycle of spare parts

The ring and roller are forged by special material with high utilization.

Under the same grinding material and finish special size, the lifecycle of spare parts is about one year, which is 2-3 times longer than impact mill or turbo mill.

Lifetime can reach 2-5 years for grinding calcite carbonate.

High safety and reliability

Asn rolling bearings or screws in grinding cavity, there are no problems caused by bolts shedding or rapid wear of bearings and seal components.

High fineness, flexible adjustment

The final fineness of the grinding materials can be adjusted between 325 meshes and 2500 mesh (47-5 micron), and the product fineness can reach D97≤5μm.

Environment-friendly

The application of pulse bag filter and muffler greatly alleviates dust pollution and noise.

Advanced intelligent speed control device

Convenient adjusting, more uniform particle size.

Technical data of Stone Powder processing equipment:



Model Ring Numbers(mm) Ring Numbers (pcs) Roller Numbers(pcs) Main shaft speed(r.p.min) Feeding

Size(mm) Output Size(um) Capacity(t/h) Overall

Dimension(m) Equipment capacity(kw)

HGM80 800 3 21 230-240 ≤20 5-47(325~2500) 0.5-4.5 13.9X4X6.2 145-165

HGM90 930 3-4 24-32 200-220 0.6-6.5 14.7X4.8X7.2 185-204

HGM100 1035 3 27 180-200 0.7-7 18x4.6x8.6 263

HGM100A 4 34-36 1-8.5 263-290

HGM125 1300 4 40-44 135-155 1.5-12 14x9x10.25 380-430 [production time]: September 2019 [Location]: South Africa [Material]: Quartz [Yield]: 250t / h [Device configuration]: jaw crusher, vibrating screen, vibrating feeder, cone crusher, three-ring micro-grinding
