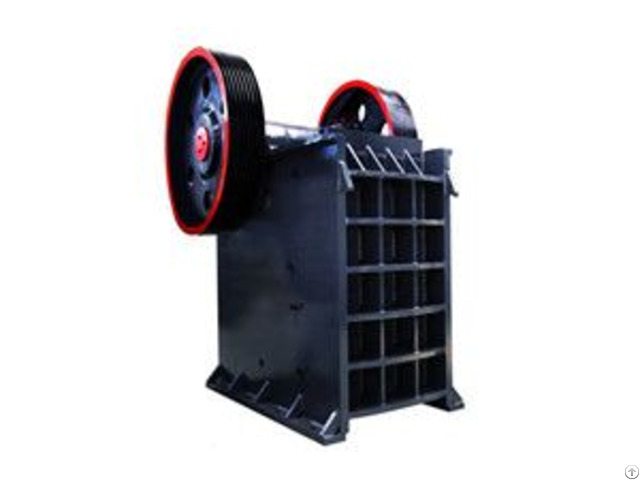

Custom Industrial Jaw Crusher - China

Jaw Crusher custom Jaw crusher manufacturers

Ding Bo heavy industry jaw crusher mainly includes PE jaw coarse crusher, PEX fine jaw crusher, PEW European version jaw crusher and other models.

Jaw crusher is commonly known as jaw crusher.

The jaw crusher produced by Ding Bo Heavy Industry mainly includes steel plate casting and other types.

The crushing cavity is composed of two jaw plates, the moving jaw and the static jaw.

Complete the crushing process of the material.

Industrial Stone Crusher Machine is currently widely used in the quarry, mine manufacturing, building materials, highway, railway, water conservancy and chemical industry, construction waste treatment, and other industries in the crushing of various ore and bulk materials.

The highest compressive strength of the crushed material is 320Mpa.

[Feed size]:

125-1020 (mm)

[Production capacity]:

5-800 (t / h)

[Application field]:

It is widely used in various industries such as mining, metallurgy, building materials, highways, railways, water conservancy and chemical industries.

(For more application areas, please click "free consultation")

[Adapted materials]:

Suitable for fine crushing and ultra-fine crushing of hard rocks, ore, slag, refractory materials, etc.

custom Industrial jaw crusher advantages Hydraulic control for easy cavity cleaning

Equipped with a hydraulic oil station to ensure that the machine's lubrication system supplies oil to the parts that need to be lubricated, and to ensure the safe operation of the machine.

At the same time, if the crusher is stopped under load, the hydraulic cavity cleaning system can quickly clean up the crushing cavity, which greatly reduces the downtime.

Wedge device quick adjustment

Adopting wedge discharge opening adjustment system, so that the machine can adjust the discharge opening to a predetermined value within a few minutes even under the condition of idling.

With the cooperation of the hydraulic system, it can realize automation, which is better than the old-style gasket discharge opening.

The adjustment system is simpler, safer and faster.

Structure V-shaped toothed guard

The design of the "V" -shaped crushing cavity and the toothed guard plate is more reasonable, ensuring the consistency of the actual feeding size and the theoretical feeding size, effectively increasing the crushing area, and the material will not block in the crushing cavity, so that the crushing rate And maximize production and increase the utilization of the jaw.

Stable structure and reliable performance The bearing seat adopts an integral cast steel structure, which avoids unnecessary burdens on the frame caused by the two-piece bearing chamber and improves the stability of the overall structure.

In addition, the heavy eccentric shaft is processed by forging billet, which makes the PEW series jaw crusher have extraordinary reliability.

working principle During the working process of the Stone Crusher Machine, the motor drives the eccentric sleeve to rotate through the transmission device.

The moving cone is rotated under the force of the eccentric shaft sleeve.

The section of the moving cone near the static cone becomes the crushing cavity, and the material is subject to the moving cone.

And static cone crushed and crushed repeatedly.

When the moving cone leaves the section, the material that has been broken to the required granularity there falls under its own gravity and is discharged from the bottom of the cone.

Technical Parameters

Model Feeding Opening Size(mm) Max.

Feeding

Size(mm) Adjustment Range of Discharging Opening(mm) Capacity(t/h) Power(kw) OcerallDrmension(mm) Weight(t)

PE250x400 400X250 210 20-80 5-20 15 1450x1315x1296 2.8

PE400X600 600X400 350 40-100 15-65 30 1700x1732x1653 6.2

PE500X750 750X500 425 50-100 45-110 55 2035x1921x2000 11

PE600X900 900X600 500 65-140 90-180 55-75 2290x2206x2370 16

PE750X1060 1060X750 630 80-160 110-320 110 2655x2302x3110 29

PE900X1200 1200X900 750 100-200 200-400 132 3380x2870x3330 54.5

PE1000X1200 1200X1000 850 195-260 220-450 160 3480x3876x3330 58

PE1200X1500 1500X1200 1020 150-300 400-800 180-220 4200x3750x3820 100.9

PE150X250 250X150 125 10-40 1-5 5.5 875x758x850 0.81

PE150X750 750X150 125 18-18 5-16 15 1200x1500x1200 3.8

PE250X1000 400X250 210 25-60 16-50 30-37 1530x1992x1380 7

PE250X1200 1200X250 210 25-60 20-60 37 1900x2192x1430 8

PE300X1300 1300X250 250 25-105 20-90 55-75 2720x1950x1600 11

[production time]: September 2018 [Location]: Africa [raw material]: granite [Yield]: 250t/h [Device configuration]: European version jaw crusher, Vibrating screen, Vibrating feeder, Cone crusher
