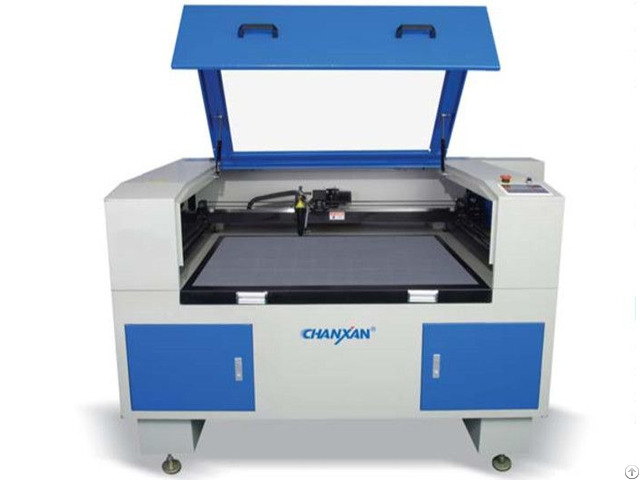

Cw 6040 Bamboo Crafts Laser Cutting Machine - China

Introduction：Bamboo wood crafts laser cutting machine CW-6040 - This small laser engraving machine combines the characteristics of high-speed cutting and engraving.

The focusing spot is fine, the cutting precision can reach 0.1mm, and the cutting surface is smooth and delicate.

The cutting speed is fast and can reach 60, 000mm/min.

The laser cutting machine has stable performance, convenient operation and low maintenance cost.

It has a small size and can be placed at will.

It is suitable for batch processing of enterprises and can also be used for store processing.

Applicable Field：Mainly used for bamboo and wood products carving, plastic carving lettering, crafts gift carving, musical instrument carving, greeting card flower cutting, jewelry carving, button cutting lettering and other crafts.

Materials Applicable：Bamboo and wood crafts, greeting cards, plastic materials, etc., can also be used to engrave or cut other non-metallic materials.

Working Theory

After the laser is generated, laser cutting Production Line is transmitted by the mirror and irradiated to the bamboo and wood crafts and other materials through the focusing mirror, so that the bamboo and wood crafts are subjected to strong heat energy and the temperature is sharply increased, so that the point is rapidly melted or vaporized due to high temperature, and the laser head is matched with the laser head.

The trajectory of the operation thus achieves the purpose of processing.

Parameters

Type CW-6040

Working Size 600*400mm

Laser Type co2 laser 40/60W

laser power 0-800mm/s

laser speed 0-1000mm/s

Precision ≤0.01mm

Format DXF, PLT, BMP, AI, GML, DST

Cooling System Reinforced industrial cooling system

Whole power 1500W

Net weight 175KG

Working Temperature 0-45℃

Machine Size 1200*940*1150 mm
