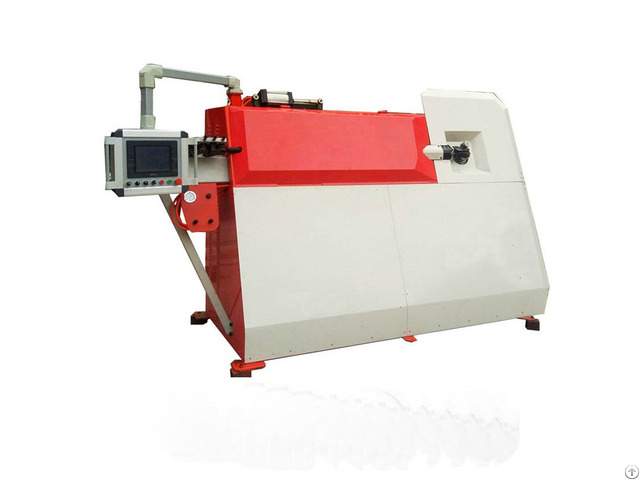

Df 750 4 16mm Cnc Automatic Stirrup Wire Bending Machine - China
price: contact company for price
DF-750 4-16mm CNC automatic stirrup wire bending machine for construction automatic stirrup bending machine automatic bending steel hoop machine exporter automatic CNC bending steel hoop machine from feeding, descating, straightening extends curved shape, cut a variety of processes single one alive, directly produced a variety of specifications of various sizes, fully meet the design requirements .
Steel Bar Bending and Cutting Machine from feeding, descaling, straightening extends curved shape, cut a variety of processes single one alive, directly produced a variety of specifications of various sizes, fully meet the design requirements .
A variety of specifications can be processed in various sizes square, rectangle, diamond, polygon, etc.
Steel Bar Bending and Cutting Machine can automatically complete straightening steel, length, bend-shaping and cutting and other functions, saving time, high production efficiency can be achieved automatic, uninterrupted processing operation .
Steel Bar Bending and Cutting Machine is widely used in railways, highways, bridges, real estate, steel plants and other larges areas.
Stirrup bender properties: automatic straightening, bending and cutting in one shape.
Hydraulic Control
Accuracy<1mm
Bending shape>800
Max bending diameter 16mm
1 - Full automatic stirrup feeding and bending system ( CNC ).
2 - Moveable air compressor design, to ensure better cooling effect, easy transportation and installation
3 - High power feeding motor to ensure bending bar accuracy.
4 - Bending arm driven by servo motor can protrude or draw back while bending different angles, while cutting system receives signal.
5 - High quality special material and high treatment to make straightening wheels, traction wheels, the metering wheel, longer life with lower operating costs
6 - Touch-screen console, easy to operate, more fast easy adjustment and maintenance, and more security and fast.
Recommended application industry:
Automobile fittings ( oil pipe for brake, muffler, seats and so on), motorcycle, healthy equipment, air-conditioning, bicycle, steel furniture, sanitary wares and so on; Technical Parameter of rebar bending machine
MODEL 750
process diameter of single rebar 4-16mm
process diameter of double rebar 4-14mm
max bending angle 180
max towing speed 130m/min
max bending speed 1460
length accuracy 1mm
angular accuracy 1
steel processing shape 150type
working temperature -5-40
weight 2980kg
dimension 3510*1210*2210mm
direction of processing forward direction and opposite direction Pre-sale Service and warranty
1 - Supply item design, process design.
2 - Help you to chose the fitest machine.
3 - Making the machine according to your requirement.
Sale Service
1 - Acceptance equipment together with you.
2 - Help you to make the method statement and the details of the process.
After Service
1 - Guarantee for a year.
2 - Quality problem, we will sent you the accessories.
3 - Free repair whole using life(without the freight and accessories charge) 12months Quality warranty period (after put into operation formally).
Provide technical guide for stirrup bending machine forever.
After Quality Warranty period of steel bar bending machine, will provide the spare parts with cost price.
All the machines provided by our factory will be tested before ship.
We have the capacity to provide product such as industrial dust collecting system, pneumatic conveyor and stirrup wire bending machine design, manufacture and after-sale service.
Company Contact:
- Phone: 86031168026255
- Address: Putian Building 12th Floor, Botanical Garden Street No.33, Xinhua District, Shijiazhuang , hebei , China
- Email:
- Website: https://www.hbtzmt.com/
Published date: March 4, 2021
- Business Description: Hebei Taizhe Machinery is the subsidiary company of Shijiazhuang Zhong Jia Xin Machinery and Equipment Co., Ltd. which was founded in 2007, it is a production-oriented enterprise with R & D, design, production, installation and after sale service.
Our products has been exported to Malaysia, Indonesia, India, Columbia, Russia, Egypt, Pakistan and more than twenty countries around the world.
We have successively cooperated with several Premium customers.
such as Malaysia Ann joo steel, India Tata Group and Egypt Suez Cement Group for many years and won good reputation among them.
we can provide one-stop service, match the different requirement from different client group.
