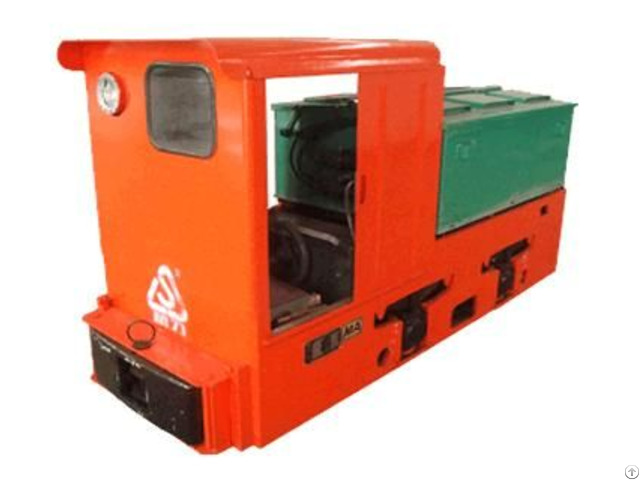

Explosion Proof Narrow Gauge Battery Locomotive For Mine Tunnel Transportation - China

Technical Specifications Model Name: CTY5/6, 7, 9G(B)

Adhesive Weight: 5 tons

Track Gauge: 600, 762 or 900mm (According to Requirements)

Hourly System Traction: 7.06kN

Max.

Traction: 12.26kN

Hourly System Speed: 7km/h

Supply Voltage: 90V

Capacity of Traction Battery: 330Ah or 385Ah ( 5 hours capacity)

Power of Electric Motor: 7.5 kW*2

Length: 2960mm or 2860mm

Width: 920, 1082 or 1220mm

Height: 1550mm

Wheelbase: 850mm

Wheel Diameter: Φ520mm

Height of Traction: 210 or 320mm

Min.

Turning Radius: 6m

Speed Regulating Mode: Resistance or IGBT

Braking Mode: Mechanical Brake Frame

Constructed in welded steel and suspended by leaf spring on grease bearing seats with tapered roller bearings.

Speed control

In order to achieve continuous and step-less speed regulation, they have an electronic speed controller with high reliability.

Brakes

Mechanical brake to the four wheels by brake shoes.

Sanders

Pneumatic sanding system to the rails.

Battery

The battery housing is constructed in steel plating with an interior anti-acid covering.

Each device has 45 pcs series storage lead acid batteries.

Buffers and motor suspension

The locomotive has two buffers with spring shock absorbers to achieve complete shock absorption against collisions.

Equally, the motor is suspended from the chassis by a springs brace.
