Factory Supply Dust Unloading Ash Rotary Air Discharge Valve - China

Factory supply dust unloading ash rotary air discharge valve discharge valve for cement plant Star Ash discharging valve Rotary airlock valves serve as a "lock” to prevent air loss while simultaneously performing vital material handling functions.

it have wide application in industry wherever dry free-flowing powders, granules, crystals, or pellets are used.

Typical materials include: cement, ore, sugar, minerals, grains, plastics, dust, fly ash, flour, gypsum, lime, coffee, cereals, pharmaceuticals, etc.

Industrial Rotary airlock feeder Description

The star unloader is divided into round star unloading valve and square star unloading valve according to its external structure.

It can also be divided into three types: ordinary type, pressure type and high temperature type.

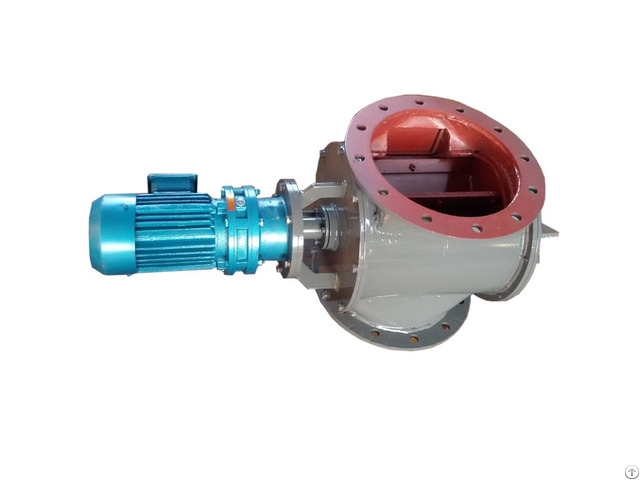

The star-shaped ash discharge valve is mainly composed of a motor, a reducer, a casing, an impeller, a main shaft, a bearing, and left and right end covers.

Adopting high-quality steel plate welding structure, the blade has strong abrasion resistance, and integrates transmission device, transmission shaft and blade.

The unloader can be used in the material collection system.

As the unloader of the silo, it is often used in the dust removal system as one of the important equipment of the dust removal system.

It is especially suitable for dust.

Grain, cement, road construction, drying equipment and other industrial projects are selected and used.

Rotary airlock valves Main Technical Parameters:

Port Size mm 200 250 300 350 400 450

Capacity m³/h 10 20 25 35 40 60

Rotate Speed: R/min 24 24 24 24 24 24

Power: KW 0.75 1.1 1.5 1.5 1.5 1.5 AIR LOCK VALVE Features:

1 - Compact structure, beautiful appearance and easy to use.

2 - Smooth operation and low noise.

3 - Since the bearing and gearbox are separated from the housing for a certain distance, the high temperature and lubrication are greatly improved.

4 - The factory can also design and manufacture according to user requirements.

5 - This product is shipped from the factory.

It is filled with special grease for pinwheel cycloid reducer.

Please check the oil regularly.

Packaging & Shipping:

We test rotary airlock feeder before it is packaged and transported:

Main part and relative valves, instrument: composite material box packed, rain-proof.

FAQ

1 - Q: Are you a factory or trading company?

A: We own 1 factory and have 2 cooperated factories, hebei taizhe machinery trading Co., ltd is a trading company.

We have the improvement teams from design, manufactureto installation, commissioning and staff training

2 - Q: Where is your factory located? How can I visit there?

A: Our factory is located in Shijiazhuang City, the capital of Hebei Province, 1.5 hours way by high-speed rail from beijing to shijiazhuang.

It’s near the airport and train station.

3 - Q: How does your factory do regarding quality control?

A: We test our machine before shipping.

Our factory has gained ISO9001: 2008 authentication.

4 - Q: How long is the warranty?

one year warranty and free cunsultaion during the period of use.

5 - Q: how to pay for the product?

L/C, T/T and Western union is available.
